US$20,000.00-45,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
YLBW-32 YLBW-40 YLBW-63
Product Type
Pipe Extrusion
Assembly Structure
Integral Type Extruder
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Computerized
Computerized
Pipe Diameter
From 16mm-63mm
Pipe Usage
Water, Engergy, Gas, Irrigation, etc.
Advantages
Long Life/High Efficiency/High Capacity
Extruder Control
by Siemens PLC Screen Touch
Electrical Components
Siemens, ABB, Omron, FUJI, etc.
Production Speed
Around 0.5-25meter/Minute
Delivery Time
Around 40 Days
Machine Installation
Available
Motor Drive/Inverter
Siemens/ABB Brand
Certification
CE, ISO9001:2008, SGS
Transport Package
Plastic Film and Wooden Pallet
Production Capacity
30 Sets/Per Month
Packaging & Delivery
Package Size
250.00cm * 200.00cm * 200.00cm
Package Gross Weight
4000.000kg
Product Description
Product Introduction
Corrugated pipe Application: widely used in the whole country water supply, water sewage, drainage, irrigation, and electric thread-passing, machine circuit, wire/tube protection of air conditioner and washing machine, and in constructions of subway, mining, etc.

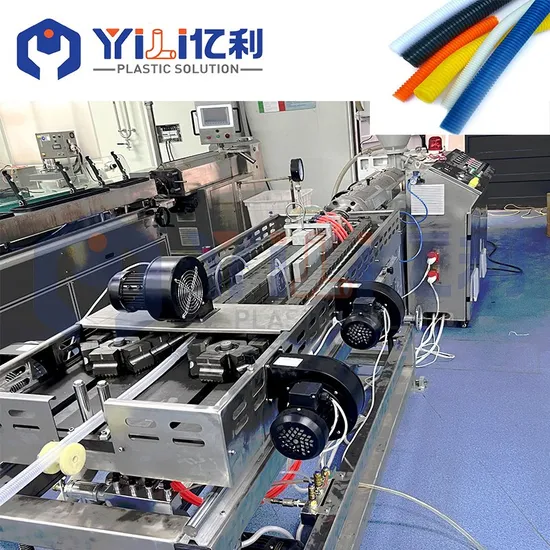

The corrugated pipe extrusion machine line consists of
vacuum feeding loader, extruder, corrugator, winder.
Technical Specification
| Machine Model | Pipe Size ID (mm) | Max. Extrusion Capacity (kg/h) | Extruder |
| YLBW-32 | Ø16-Ø32 | 40 | 55/30 |
| YLBW-40 | Ø16-Ø40 | 40 | 55/30 |
| YLBW-63 | Ø16-Ø63 | 80 | 65/30 |
Machine advantages
Technology Process
-High performance Extruder
the key important part in the whole production line, ensure high capacity, high efficiency and excellent plasticization.
-Corrugator
* Material: 40Cr
* Single layer or Multi-layer design
* One mould with two sizes. No need to change mould blocks.
* Inner cooling system: air cooling or water cooling for different forming speed.
* Horizontal structure corrugator. Easy to change forming dies.
-Dual Position coiler
Automatic pipe arranging
>>
