CNC Machine Tools Zhoushan The Hometown of Screw CNC Screw Milling Machine

Product Description

LXK350C×6000 CNC screw milling machine
I. Introduction to machine tools
LXK350C type (external type) CNC screw milling machine is our company's own research and development of a series of screw processing machine leading varieties, the product is.

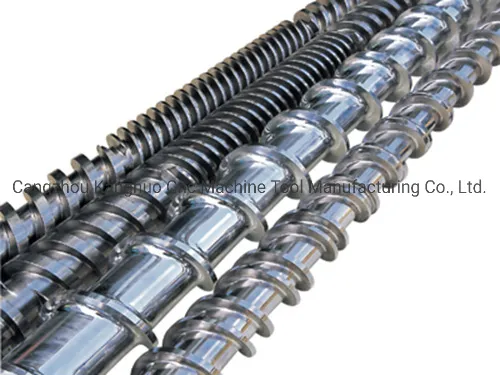

designed for the processing of equal lead, variable lead, gradual lead, equal groove depth, variable groove depth and other special-purpose screw machine.
LXK350C CNC screw milling machine has the following characteristics:
1, the whole bed design, three guide rail layout, guide rail surface high-frequency quenching, good rigidity, high precision.
2, the milling head adopts high power frequency conversion motor, which can make the milling cutter realize stepless variable speed and wide speed range. The milling head can be manually adjusted according to the requirements of the workpiece. The milling head can go up and down.
3, X axis and Z axis reciprocating motion using ball screw to achieve high repeatable positioning accuracy.
4, C axis drive for worm gear and worm structure, smooth transmission, accurate indexing.
5, the saddle is dovetail guide rail, high position accuracy, good fast speed.
6, the spindle bearing is lubricated by oil, low temperature rise, high durability, and no daily lubrication maintenance.
7, the machine tail seat is mechanical, flexible and reliable.
8, the machine is equipped with a wide range of control system.
9, the machine is equipped with chip discharging machine, the iron filings generated in the milling process directly into the chip discharging machine, to ensure the clean working environment.
10. The electrical components in the machine tool electrical control cabinet are delixi brand.

items	prospectus	unit
extent	2700	mm
breadth	1050	mm
maximum machining diameter	Φ150	mm
maximum length of workpiece	750	mm
Maximum grinding length	500	mm
Number of workpiece helical head	at will
Rated power of motorized spindle	18.5	KW
Rated speed of motorized spindle	3000	r/min
Maximum rotation Angle	±30	angle
Grinding wheel specifications	Φ300-Φ400×(10,20)	mm
Servo control shaft number	workpiece revolution(C)
	workbench(Z)
	apron(X)
	Grinding head rotation(B)
	grinding wheel dressing(W)
	grinding wheel dressing(U)
numerical control system	Six axis two linkage
C axis motor	18	Nm
C axis positioning accuracy	8	second of arc
X axis positioning accuracy	0.02	mm
machine overall dimension	3000×1900×2000
Machine weight	≈6.5	T

---
