Cost-Effective, High Quality High Speed master-slave supported BLE Bluetooth module TS-M1033

Product Details

Product Description

Product Description

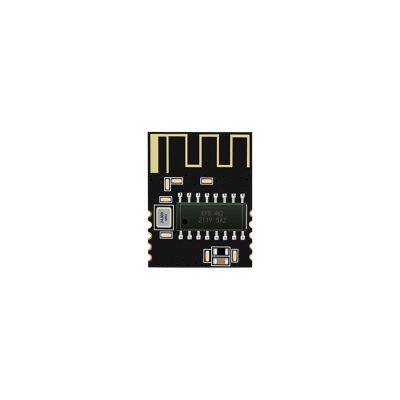

The TS-M1033 is a high-speed BLE 5.1 Bluetooth module that supports serial port transparent transmission, master-slave mode, and AT commands. Users can modify parameters such as serial port baud rates and device names using the provided AT commands, offering flexible and easy operation. This module is characterized by excellent stability, ultra-low cost, and high reception sensitivity.
Model No.: TS-M1033
Features
Bluetooth Version: BLE 5.1
Frequency Band: 2.402GHz-2.480GHz ISM band
TX Power: -20dBm~+8Bm
Receive Sensitivity: -92dBm
Air Rate: 250Kbps/1Mbps/2Mbps
Antenna: PCB Onboard
Advise Range: 60m
CPU: Embedded 32-bits Processor
Memory: 48KB RAM
Size: 18.5*15*2.5mm
Pin/GPIO: 10/5
Power Supply: 2.5~4.3V
Operating Temperature: -40℃~+105℃
Peripheral Interface: UART/SPI/I2C/ADC
Serial Transparent Transmission Rate: BLE 20KB/s
Applications
Smart home
Location tracking
Bluetooth electronic scale
Intelligent educational equipment
Vehicle testing equipment
Measurement and monitoring system
Bluetooth wireless data transmission
Industrial sensors and controls
Medical equipment monitoring and wireless control

---
