Hot Selling Hand Control Reaper 4lz-0.5 Rice and Wheat Mini Combine Harvester

Product Description

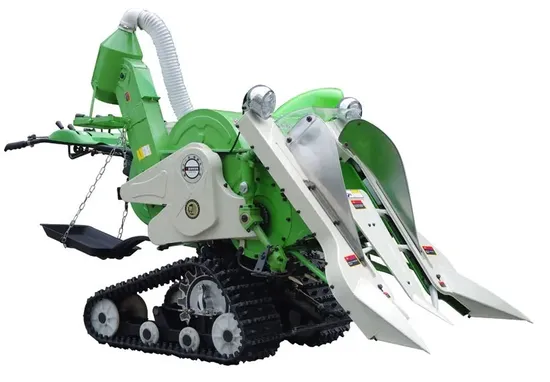

Hot Selling Hand Control Reaper 4LZ-0.5 Rice And Wheat Mini Combine Harvester
Product Application for wheat harvest machine
1.This wheat harvest machine is mainly applicable for harvesting wheat, rice, beans and so on.
2. The wheat harvest machine has the characteristics of simple & proper structure operation and repairing, small volume,
light weight, low energy consumption, stable performance.
3.The wheat harvest machine has compact structure, safely, easy to operate,easy-moving.
4. It's applicable in the plain,hills ,slopes ,small fields ,etc. In addition , it's with the advantages of small volume , light weight and so on.
Technical data for each models price of wheat harvest machine
Our main model for wheat harvest machine as following:
1.Model 4L-0.6
2.Model 4L-0.7
3.Model 4L-0.7F
4.Model 4L-0.8
5.Model 4L-0.9B
6.Model 4L-0.9B Plus
7.Model 4LZ-1.0 Product Application 4LZ-0.5 rice and wheat combine harvester is for paddy filed works. The combine harvester exported to South-east Asian, Middle-east Asian, South America and Africa.

Model		4LZ-0.5
Dimension (Length*Width*Height) mm		2500*1100*1500
Weight (kg)		320
Cutter bar length (mm)		900
Feeding capacity (t/h)		1.08
Engine	Type	Air cool, four stroke,gasoline engine
	Model	SR 180F
	Output/rpm (kw/rpm)	6.8/3600
Crawler specification (width*pitch*No.of tooth)		250mm*72mm*28
Steering method		Drum brakes steering
Fuel consumption (kg/(hm2)		≤30
Working efficiency (hm2/h)		≥0.5
Wet field passing		15cm
Grain unloading method		By sack
Total loss (%)		Rice≤3.0,Wheat≤1.2
Breakage rate (%)		Rice≤1.5,Wheat≤1
Impurity rate (%)		Rice≤2.0,Wheat≤2.0

Model	4L-0.6 wheat harvest machine
Engine	186F diesel /9hp
Cutting width	1100mm
Feed Rate	0.6kg/s
Overall Dimension	2280X1250X1380mm
Weight	350kg

Model	4L-0.7 wheat harvest machine
Engine	196 diesel engine /12hp
Cutting width	1100mm
Feed Rate	0.7kg/s
Overall Dimension	3400mm×1400mm×1300mm
Weight	900kg

Model	4L-0.7F wheat harvest machine
Engine	14hp 196 diesel engine
Cutting width	1100mm
Feed Rate	0.7kg/s
Overall Dimension	3400mm×1400mm×1300mm
Weight	950kg

Model	4L-0.8 wheat harvest machine
Engine	14hp 196 diesel engine
Cutting width	1100mm
Feed Rate	0.8kg/s
Overall Dimension	3570mm×1460mm×1480mm
Weight	963kg

Model	4L-0.9B wheat harvest machine
Engine	188F/10Hhp
Cutting width	1000mm
Feed Rate	0.9kg/s
Overall Dimension	2720x1300x1210mm
Weight	600kg

Model	4L-0.9B Plus wheat harvest machine
Engine	188F/12.5hp
Cutting width	1000mm
Feed Rate	0.9kg/s
Overall Dimension	2810x1430x1310mm
Weight	600kg

Model	4L-1.0 wheat harvest machine
Engine	28hp diesel engine
Cutting widtg	1350mm
Feed Rate	1kg/s
Overall Dimension	3600x1700x1650mm
Weight	1100kg

---
