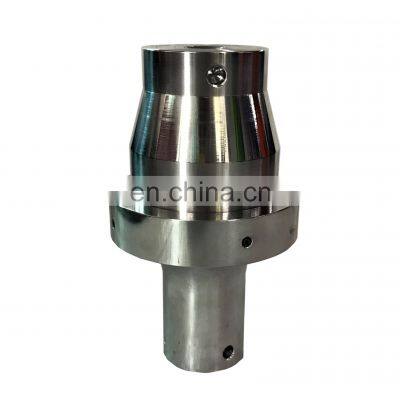

Ultrasonic Welding Transducer Booster
What is a booster horn?
A booster horn is a one-half-wavelength long resonant section made of aluminum or titanium. It modifies the amplitude of vibration
applied to the horn.
Where is it located?
The booster is mounted between the converter and horn.
How does it work?
To provide an amplitude change, the booster will have different diameters on either side of its center or nodal point. A smaller
diameter at the end attached to the horns, means that the boosters horn is amplitude increasing. A greater diameter at the end
attached to the horn means the booster horn is amplitude decreasing.
Clamped at their nodal point, booster horns provide rigid support for the transducer ,converter/horn assembly.
Frequency
| 20KHz
|
Material
| Aluminum /Titanium
|
Booster gain
| 1:2.0
|
Stud sze
| 1/2-20
|
Branson 900 series 20 kHz titanium boosters. Made in titanium and are for use on the following Branson welders. Model # 5170,#501, #8800, #851 actuator and all 900 series actuator/presses 901, 921, 931, 910IW, 920IW and all 2000 series 20 kHz #2000AE, AED and AEF presses/actuators.
Booster gain:
0.6:1
1.0:1
1.5:1
1.75:1
2.0:1
2.5:1
Detailed Images
1. The main ultrasonic unit composed of a converter (piezoelectric transducer),booster and asonotrode(horn). All three elements of the stack are specifically tuned to resonate at the same exact ultrasonic frequency( typically 15,20,30,35 or 40KHz)
• Converter/transducer: converters the electrical signal into a mechanical vibration
• Booster: modifies the amplitude of the vibration. It is also used in standard systems to clamp the stack in the press.
• Sonotrode/horn: applies the mechanical vibration to the parts to be welded.
2. ultrasonic generator(power supply) delivering a high power AC sinal with frequency matching the resonance frequency of the stack..
Features:
1.Adopt the imported chips
2.High output power
3.High quality
4.Already export to USA, Europ, Asia ,Middle East etc country
5.15KHz-40KHz,300W/600W/900W /1500W/2000W/2600W/3200W/4200W supplied
