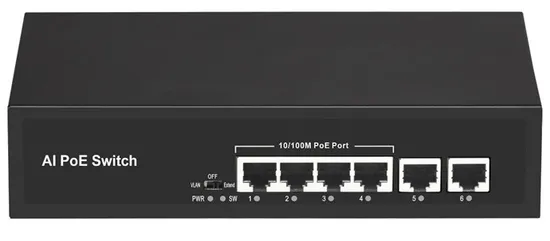

Product Description: 4+2 PoE Port: 4 Port 10/100Mbps Uplink Port: 2 Port 10/100Mbps PoE Transmission Distance: 0-100m/250m (Selected by switch) Built-in Power Supply: yes Watt: 48Watt Input: 100-240V AC 50/60Hz VLAN: yes Watchdog: yes Datasheet
| Model | HN4H2-48-V2 |
| Product | PoE Switch |
| Ports |
| Network Port: | 6 |
| PoE Port: | 4, 10/100Mbps; RJ45 Ports; Max. 30W Output of Single PoE Port |
| Uplink Port: | 2, 10/100Mbps; Transmission Distance: Default: 0-100m |
PWR
(Power supply Indicator) | Light on: Powering |
| Light off: No Power |
| SW (Mode Switch) | Green light off: Normal/Default mode |
| Green light on: VLAN mode |
| Green light flash: Extend mode |
| RJ-45 ACT indicator | Green light off: Link is disconnected |
| Green light on: Link is connected |
| Green light flash: Data Transmitting |
| Standard |
| Network Protocol: | IEEE802.3/802.3u/802.3x |
| Performance |
| Switching Capacity: | 1.2Gbps (non-blocking) |
| Packet Forwarding Rate: | 0.8928Mpps |
| Forwarding Mode: | Store-and-forward |
| Packet Buffer: | 448K |
| MAC Address Table: | 2K |
| VLAN | Support |
| PoE watch dog | Support |
| Power Over Ethernet |
| PoE Standard: | IEEE802.3af, IEEE802.3at |
| PoE Power Supply | 1/2(+),3/6(-) |
| Transmission Distance: | 0-100m/100Mbps or Max. 250m/10Mbps via Cat.5e or more under Extend mode |
| General |
| Power Source: | Bult-in Power Supply |
| Input: 100-240V AC, 50/60Hz |
| PoE Power Budget: | 48W |
| Power Consumption: | <5W |
| ESD | Air discharge: 8KV |
| Contact discharge: 6KV |
| Surge Protection | Common mode/RJ45 port: 4KV |
| Differential mode/RJ45 port: 2KV |
| Common mode/Power board: 2KV |
| Differential mode/Power board: 2KV |
| Working Temperature: | -10ºC-50ºC |
| Humidity: | 5%-90% , non-condensing |
| Storage Temperature: | -40ºC-70ºC |
| Color | Black |
| Weight: | 0.6kg(not include input cable & packaging) |
| Dimension(L×W×H): | 200*118*44mm |
