Advanced Full Automatic 1L Plastic Bottle Manufacturing Machine

Product Description

Products Description
TECHNOLOGY 1.Die-head
2.Linear displacement transducer used to control the clamping units' movement
3.Parallel clamping units
4.Central supporting frame for the mold 5.Speed control valves for mold's movement 6.Imported hydraulic components
7.Imported solenoid valve
8.Blowing units 9.Extrusion system
FEATURES:
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.
2:Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
3:High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed to screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers' top quality requirement.
5:Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
6:Multiple-way PID controlled temperature heating is precise and stable.
Template hydraulic drive automatic translation
Dual proportional control of pressure & flow

Special reducer valve, accurate positioning shift mode, no impact
Humanized touch screen, easy to master and operate
1.Rotary Trimming Equipment 2.Auto Deflashing Equipment 3.Rotary Trimming Configuration 4.Die Head 5.Optional for all Accessory Equipment 6.Mould 7.Parison Controller
Product Paramenters
EXTRUSION BLOW MOLDING MACHINE
HIGH-SPEED DOUBLE STATION EB50H.

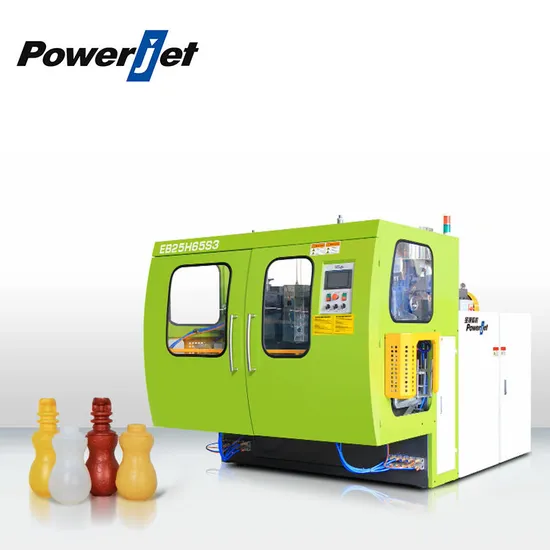

Powerjet Double Station Extrusion Blow Molding Machine EB25H is specialized for manufacturing bottles and containers Max 2.5L.
Max Bottle Capacity - 2.5(L)
Clamping Force - 63(KN)
Extrusion Weight(HDPE) -55(kg/hr)
Applications - Wide Range Of Bottles For Daily necessities, toiletries, beverages, water tanks, laundry detergent/shower gel/motor
oil bottles, etc

Model			EB25H
Max. Product	L	2.5
Clamping Force	KN	63
Screw Diameter	mm	65
Screw L/D Ratio	L/D	25
Screw Rotary Speed	RPM	65
Extrusion Weight (HDPE)	kg	55
Extrusion Motor Power	KW	15
Pump Motor Power	KW	7.5
Heating Capacity	KW	17
Operation Pressure	Mpa	0.6~0.8
Air Consumption	m3/min	1.5
Cooling Water Consumption(25°c)	L/min	50
Machine Dimensions (LXWXH)	m	3.1*2.4*2.2
Machine Weight	T	3.9

Company Profile
POWERJET PLASTIC MACHINERY CO., LTD. was founded in 2000, the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong Province, occupying an area of 130,000 square meters.POWERJET is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and extrusion blow molding machine.

In a production area of more than 50,000 square meters, we have an automated production line and an active staff. Lean organizational structure, efficient operation and ultra-modern machinery and equipment to ensure the production efficiency and flexibility, allows us to ensure quality and the fastest production cycle at the same time, at very competitive prices. Annual production capacity has reach to 4000-5000 injection sets of.
Please feel free to consult us to know more information. Thanks~

FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2:Do you offer guarantee for the products?
A2: Yes, we offer 1 years warranty to our products.
Q3: Where is your factory located?
A3:POWERJET PLASTIC MACHINERY co., LTD. the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong ProvinceWe are warmly welcome you to visit us.

---
