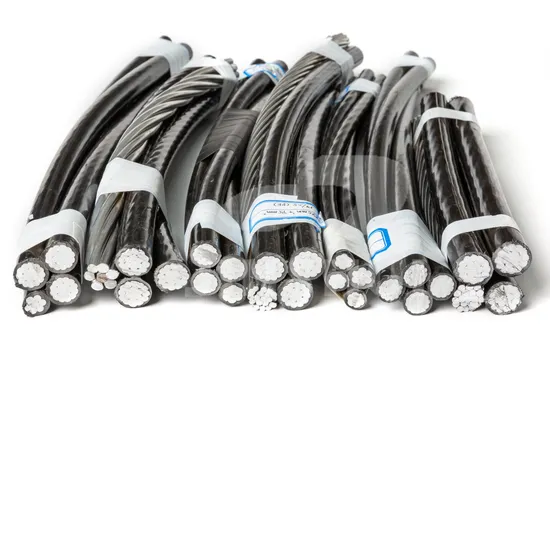

0.6/1kv XLPE Aluminum Core Aerial Bundled Electrical Cable (ABC cable)

Product Description

Product Description
Application
The cables are intended for overhead power lines and input wires with voltages up to 0.6/1 kV inclusive.
Used for hanging works such as street lighting, outdoor lighting and temporary construction maintenance. which increases the safety and reliability of using electrified wire mesh.
Specifications Standard: IEC and ASTM National Standard
Rated voltage: 0.6/1 kV, 11 kV, 33 kV
Construction
Phase conductor: Aluminum stranded (AAC)
Neutral conductor: Aluminum stranded (AAC), Aluminum alloy stranded (AAAC), Aluminum steel reinforced wire (ACSR)
Insulation: Cross-linked polyethylene or polyethylene.
Specification

Number of cores and cross-section	Nominal insulation thickness	Outer diameter (approx.)	Weight (approx.)	Metal number Al	Maximum resistance of conductor
mm2	mm	mm	kg/km	kg/km	Ohm/km
1x16	1.2	7	66	47	1.910
1x25	1.3	9	98	73	1.200
1x35	1.3	10	134	102	0.868
2x16	1.2	15	134	93	1.910
2x25	1.3	17	198	145	1.200
2x35	1.3	20	271	203	0.868
3x16	1.2	16	202	139	1.910
3x25	1.3	19	298	218	1.200
4x16	1.2	18	271	186	1.910
4x25	1.3	21	399	290	1.200
4x35	1.3	24	545	406	0.868
4x50	1.5	28	754	580	0.641
4x70	1.5	32	981	812	0.443
4x95	1.7	37	1334	1102	0.320
4x120	1.7	40	1633	1392	0.256
3x70+1x16	1.5/1.2	30	804	655	0.443
3x95+1x25	1.7/1.3	35	1101	900	0.320
3x70+2x16	1.5/1.2	30	874	702	0.443
3x95+2x16	1.7/1.2	35	1138	920	0.320
4x25+1x25	1.3	21	500	363	1.200
4x35+1x25	1.3	24	646	479	0.868
4x35+1x35	1.3	24	683	508	0.868
4x50+1x16	1.5/1.2	28	823	626	0.641
4x50+1x25	1.5/1.3	28	855	653	0.641
4x50+1x35	1.5/1.3	28	892	682	0.641
4x70+1x16	1.5/1.2	32	1051	858	0.443
4x70+1x25	1.5/1.3	32	1083	885	0.443
4x70+1x35	1.5/1.3	32	1119	914	0.443
4x95+1x16	1.7/1.2	37	1403	1148	0.320
4x95+1x25	1.7/1.3	37	1435	1175	0.320
4x95+1x35	1.7/1.3	37	1471	1204	0.320
4x120+1x16	1.7/1.2	40	1703	1438	0.253
4x120+1x25	1.7/1.3	40	1735	1465	0.253
4x120+1x35	1.7/1.3	40	1771	1494	0.253
4x35+2x25	1.3	24	748	551	0.868
4x50+2x25	1.5/1.3	28	957	725	0.641
4x50+2x35	1.5/1.3	28	1030	783	0.641
4x70+2x25	1.5/1.3	32	1185	957	0.443
4x70+2x35	1.5/1.3	32	1258	1017	0.443
4x95+2x25	1.7/1.3	37	1537	1247	0.320
4x95+2x35	1.7/1.3	37	1610	1305	0.320

Company Profile Zhengzhou Jinshui Industry & Commerce Co.Ltd is located in National Class Zhengzhou High and New Technology Zone in Zhengzhou, Henan Province. We own a number of exclusive core production technologies and have passed ISO 9001 Quality Management System, ISO 14001 Environmental Management System, OHSAS18001 Occupational Health Management System, ISO 10012 Measurement Management System and other systems in China and abroad.
We have been manufacturing electrical cables and wires for almost 20 years, and have also been a gold supplier for 12 years. And we are confident that we can offer you the best service and quality.
Our product range is as follows:
* Bare conductors (AAC, AAAC, ACSR, galvanized steel wire)
*Aerial cable (duplex, triplex, quadrangle)
* PVC insulated wire (rated voltage up to 450/750V)
*Wire THHN/THWN
*PVC insulated power cable
*XLPE insulated power cable
*Rubber sheathed cable
*Control cable
*Welding cable
*Cable Accessories
We participate in many fairs and exhibitions in China and abroad. Our goal is to become our customers' factory in Zhengzhou, China.
We are here to help you place orders for economical electrical cable and track your products and delivery.

Exhibition

Our Factory
Packaging and Shipping
FAQ
Q: How long does it take get my inquiry replied? A: Mostly the inquiry will be replied within 12 hours. And the quote will be sent to you in 1-3 days. It depends on the technical parameters and requirements of the cable. We will give you a reasonable and accurate quote.
Q: Can I get samples before placing the order? A: You will get a sample for free if we have the storage of that cable.
Q: What's the MOQ of your product? A: The MOQ of our most product is 1000 meters. But if there's any exceptional situation, we can make some negotiations.Fore More Information, Please do feel free to contact us! Welcome your kind inquiry!

---
