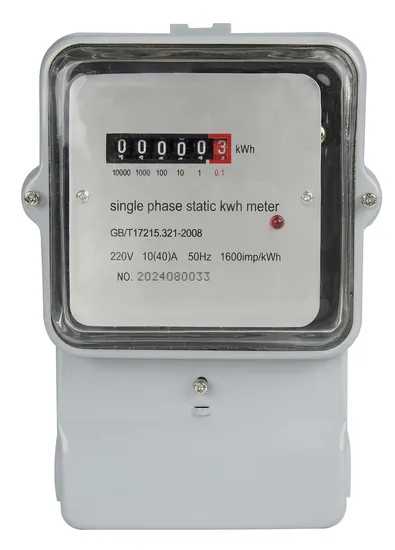

Kwh Energy Watt Hour Dds-20 Single Phase Two Wire/Three Wire Meter

Product Description

kWh meter
PRODUCT INFORMATION
DDS-20 Series single phase electronic energy meter are adopt stable performance,low power consumption of industrial components, use the process carefully design and manufacture.
SPECIFICATIONS

Technical Data
Type	DDS2203-20 Register
Display	5+1
Accuracy	Class 1
Rated Voltage (Un)	220V Or 240V Or Other
Base Current (Ib)	5A, 10A,15A or other
Max Current (Imax)	20A, 40A or other
Frequency (Hz)	50Hz Or 60Hz (±5%)
Starting Current (mA)	0.4% Ib
Power Consumption of Current	≤1W 10VA Per Phase
IP Class	IP51
AC Voltage Withstand	2KV for 1 Minute
Impulse Output Rate (Imp/kWh)	1600, 800 Or Other
Operating Temperature	-20°C To +55°C
Storing Temperature	-40°C To +70°C
Operating Humidity	≤75%
Storing Humidity	≤95%
Communication	N/A
LCD Display Backlight	N/A
Battery	N/A

*For special requirements, such as Anti tamper,RS485,IR etc.,it is to be discussed for settlement
APPEARANCE Diagram
Dimensions
ABOUT TAINIHAN
Yueqing Tainihan Electrical Technology CO.,Ltd & Yueqing Ledun Trading CO.,Ltd is located in Xiangyang industrial zone, liushi town,Yueqing City, Zhejiang province, China, which focus on electronic and electro-mechanical meter.
The company is a diversified enterprise integrates development, design, production and marketing together. Driven by innovation, Tainihan keeps perfecting existing products and developing new product lines. We have developed a front board installed energy meter, an inserting installed energy meter a DIN-rail installed energy meter, According to meter functions, there are munti-functional energy meters, multi-rate energy meters, electric power line carrier wave energy meters, network energy meters, and multi-user energy meters in our product range. Our products has attained CE certification with superior quality are popular in the global market.
Our company posses high accuracy special device, advance technology, laborious workmanship and various styles. We also have rights for import and export, our products are widely sold well to southeast Asia, Middle East, South America and other areas.
We believe that our company will be more powerful and far better by your support!
TAINIHAN WORK SHOP
TAINIHAN TESTBENCH ROOM
TAINIHAN AGING ROOM

---
