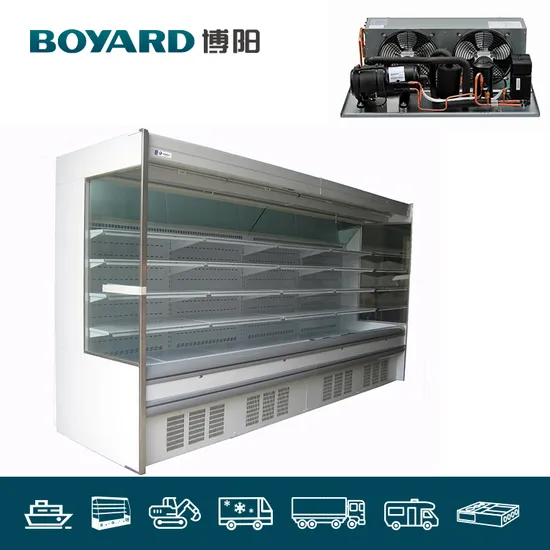

3HP Refrigeration/Condensing Unit with Inverter Compressor for Freezer Chiller Inside Set

Product Description

Product Description

Technical Data of Double-cylinder Series Condensing Uint
Model			HQSD-203KBP	HQSD-329KBP20	HQSD-456KBI23
Nominal Input(W)			1020	1770	2330
Power Supply			1PH 220~240V 50Hz
Refrigerant			R404A
Refrigerant Max.(Kg)			2.0	3.0	3.5
Start-Up Current (A)			30	38	65
Max Running Current (A)			7	10.5	14
Evap.Temp(ºC)			-40~-5ºC
Ambient Temp(ºC)			10~43ºC (When the environmental temperature under 10ºC, increase the condensation temperature control)
Compressor(Model)			KHSD203KS	THSD329KS	THSD456KS
Condenser	Fam Motor	(mm)Diameter *Quantity	φ230*2(16W*2)	φ230*3(16W*3)	φ230*4(16W*4)
		(m3/hr) Air Flow	820*2	820*3	820*4
(mm) Pipe	Gas Inlet Diam		φ12.7(1/2")
	Liquid Outlet		φ9.53(3/8″)
(mm) Out Dimension	(mm) Length		790	1145	1350
	(mm) Width		520	520	540
	(mm) Height		263
(Kg)Weight			35.5	53.3	60
(W) Capacity	Evap Temp(ºC)		Ambient Temp:32ºC
	-40		580	920	1100
	-35		710	1145	1415
	-30		890	1390	1790
	-25		1125	1830	2160
	-20		1390	2065	2695
	-15		1660	2440	3090
	-10		1950	2900	3935
	-5		2280	3250	4730
Wiring Capacity	Leak Protector	(A) Rated Current	20	20	20
		(mA) Leak Current	30	30	30
	(mm2) Diameter	L≤10m	2.5	4.0	4.0
		10	2.5	6.0	6.0
		20	2.5	6.0	6.0

(GB/T 21363-2008)TEST CONDITION:
TEST CONDITION		AMBIENT TEMP.	EVAP. TEMP.	TESTING POWER SUPPLY
Standard test conditions		32.2ºC	-23ºC	220V~50HZ
OVERLOAD RUNNING		43ºC	-7ºC	220V~50HZ

Detailed Photos
Company Profile
Packaging & Shipping
FAQ DC COMPRESSOR FAQ
Q: What's the application of DC compressor?
A: DC12V/24V compressor is widely used in air conditioning of truck cabin, construction machinery cabin; DC72Vcompressor is widely used in air conditioning of electric car, DC 48V compressor is widely used in solar air conditioner, telecommunication shelter.
Q: How does your dc compressor work?
A: This is hermetic rotary BRUSHLESS dc compressor which must be driven by dc power through controller. Electricity to be saved in battery group as energy bank; Batteries drive air conditioner to run for cooling and heating.
Q: Does your compressor can replace traditional car compressor?
A: Yes, this dc 12v compressor can replace belt car compressor. But needed some change and the compressor must be mounted reasonable and properly, and we strongly suggest for separated 12 battery power.
Q: Which kind of fan motor you use?
A: we use 24v/48V DC brush-less fan motors for both indoor and outdoor units of our solar air conditioners. DC brush-less fan motors can greatly reduce energy consumption, and run with super low noise.
Q: Do you need inverter to make DC power to AC?
A: Inverter is NOT required for our solar air conditioners, because our solar air conditioners were 100% driven by24V DC power.
Q: What will happen when a battery is not enough power?
A: When the voltage of battery is lower than the limit,the AC system will be shut off automatically. After the battery reach recover voltage, the AC system will re-start automatically.
Q: What will happen when a battery is not enough power?
A: When the voltage of battery is lower than the required power,the AC system will be shut off automatically. After the battery reach recover voltage, the AC system will re-start automatically.
Q: Are you manufacturer?
A: Yes, we are professional manufacturer of rotary compressor in China for more than 12 years.
Q: Do you have the warranty?
A: We have one year warranty for manufacturers.
Q: Which customers do you cooperated with?
A: We have cooperated with many domestic and international manufacturers, like PREAIR,KINGTEC,HAIER,SANYO and DAYRELAX and so on.
Q: What are your payment terms?
A: T/T and UC are both OK
HQHD FAQ
Q: Why choose Horizontal condensing unit?
A: Horizontal condensing unit is more compact, providing more effective volume in the showcase.
Q: What's type of compressor of the condensing unit? What's the advantage compared to reciprocating compressors?
A: The compressor is rotary compressor. In the rotary type, noise and vibration is largely reduced compared with the reciprocating compressor. Therefore noise generated by the unit can be reduced. Horizontal design makes the condensing unit more compact.
Q: Can we use this condensing unit frozen room -22°ºC?
A: Yes. The evaporating temperature of condensing unit is from -5 degree to -40 degrees. It can be used in frozen room also cold storage room.
Q: Are you manufacturer?
A: Yes. We are professional manufacturer of rotary compressor and condensing units for more than 12 years.
Q: Do you have the warranty?
A: we have one year warranty for manufacturers.
Q: Which customers do you cooperated with?
A: We have cooperated with many domestic and international manufacturers, like PREAR, KINGTEC, HAIER,SANYO, and DAYRELAX and so on.
Q: What are your payment terms?
A: T/T and LC are both OK
QGD FAQ
Q: Why choose Horizontal compressor?
A: Horizontal compressor has low height, let the condensing unit more compact, providing more effective volume in the showcase.
Q: What's the advantage compared to reciprocating compressors?
A: The compressor is rotary compressor. In the rotary type, noise and vibration is largely reduced compared with the reciprocating compressor. Therefore noise generated by the unit can be reduced. The efficiency of rotary compressor is 20% higher than reciprocating compressors.
Q: Can we use this compressor frozen room -22'ºC?
A: Yes. The evaporating temperature of compressor is from -5 degree to -40 degrees. It can use in medium temperature also low temperature.
Q: Are you manufacturer?
A: Yes. We are professional manufacturer of rotary compressor and condensing units for more than 12 years.
Q: Do you have the warranty?
A: we have one year warranty for manufacturers.
Q: Which customers do you cooperated with?
A: We have cooperated with many domestic and international manufacturers, like PREAIR, KINGTEC,HAIER,SANYO, and DAYRELAX and so on.
Q: What are your payment terms?
A: T/T and LC are both OK.

---
