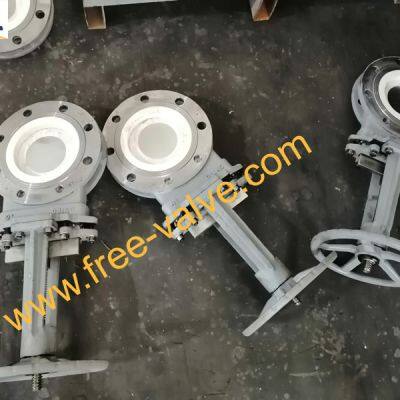

Ceramic lined knife gate valve
FREE-VALVE brand manual stainless steel ceramic lined knife gate valves are known as slurry gate valves. Its have simple structure and can cut off medium which contains solid particles and fibers, suitable for some very hard particles or serious erosive mediums.They are installed to replace general metal seated knife gate valves which will be washed out easily, especially suitable for any power plant located on sea side .
Features:
1) Short length of structure,saving material ,lightweight ,easy to install，small space occupation.
2) Seat is designed with single seat type to prevent sticking and accumulation of ash residue.
3) The sealing surface is made of structure ceramic with abrasion resistance and long service life.
4)Stainless Steel valve body material suitable for any corrosive medium
Technical Specification
1) Size Range: NPS2~NPS24,DN50~DN600
2) Pressure Range: Class 150 /PN6 /PN10
3) Applicable Temperature.: 0~200℃
4) Connection Type: Flange , wafer
5) Sealing material: engineering ceramics
6) Body Material:CF8, CF8M
7) Pressure test:GB/T13927, API598
8) Face to Face: GB/T12221, ASME B16.10
9) Valve body : GB/T12224,ASME B16.34
10)Operating Mode:Manual
Application
FREE-VALVE’s manual stainless steel ceramic lined knife gate valves are suitable for the conveying system with liquid-solid or gas -solid two-phrase medium , such as coal -water slurry ,ash, mine residue and coal residue in coal washing plant ,iron & steel plant or ash conveying system of power plant , paper pulp in paper industry, sewage and slurry in decontamination plant ,especially useful for the coal power plant over the sea side .
Model：FRZ73TC-150P
Price:500-5000USD/set
Payment terms:TT,LC
Price terms:FOB,CIF
Delivery time:40days
Origin:China
Brand:FREE-VALVE
Zhengzhou Free Fluid Control Technology Co.,Ltd
Wechat ID:Free_Valve
Email:marketing@free-valve.com
Mobile :+86-19937155563
Whatsapp:+86-13460250295
>>
