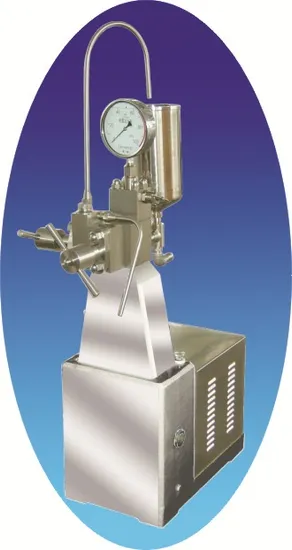

Ice Cream Homogenizer (JZH50-80) Dairy Homogenizer

Product Description

Capacity: 50 liters per hour
Least working volume: 200 ml
Max. Pressure: 800 bar
Max. Working pressure: 640 bar
Motor: 3KW/3P made by SIEMENS

Applicable
Food and Drink	Juice ,Condiments,Peanut oil,Protein powder, etc.
Dairy: Milk	Milk, ice cream, yogurt, cheese, butter, etc.
Pharmaceutical	Antibiotics,Intralipid, Antacids, etc.
Chemical	Lubricants, disinfectants, paints, dyes, etc.
Other	Cell disruption, yeast, cosmetics.

Technical Characteristics
1 Lubricating system
Lubricating system which is both squirting and splash uses soft plastic pipes that can bear high pressure and oil. The oil can keep stable temperature at the same producing condition, so it brings excellent lubricate effect. The recycle cooling system reduces driving box's temperature and lubrication waste.

2 Driving box
The eccentric shaft is made of special alloy steel which is wear-resisting and has long using life. The half construction is easy to maintain and be knocked-down. Driving and eccentric shafts are drived by v-model gears which have following advantage: low noise and good stability.

3 Wear parts
Homogenizing valve, one-way valve and piston are made of special alloy steel, with high impact-resisting and coreosion-resisting. This material is applicable to any CIP's corrosion-resisting. In special condition homogenizing and one-way valves can be made of W alloy steel which has same function. All kinds of sealing material have following advantage: wear-resisting, non-toxic, pressure-resisting and long life.
It is easy and convenient to change wearing parts, especially it is no need to take off pump during changing pistons and sealing rings.

4 Pump construction
The square high pressure covers on the pump have high intensity and excellent sealing function. The tighten nuts with lids have nice out looking. The material gate is according to food sanitation and pharmacy standards. Out-in parts take adjustable tie-in which is easy and convenient to be taken off and fixed.

5 Type
Jinzhu homogenizes are all horizontal construction which advantage is good stability and easy to operate, maintain and repair.

6 Saving energy
Jinzhu homogenizers is base on low energy waste and high efficiency designing, which has clear effect at the same producing condition.

We have six patens homogenizer. The biggest capacity of homogenizer is 35000LPH. The biggest pressure of homogenizer is 1200bar.

---
