5000 Tons Corn Paddy Maize Storage Silo Galvanized Flat Bottom Wheat Steel Silo with Sweep Auger

Product Description

5000 Tons Corn paddy Maize Storage silo Galvanized Flat bottom Wheat Steel silo
with sweep auger exported to Africa
Product Description
At present, steel warehouses have become the main warehouse type for grain storage in most countries. Steel plate warehouse grain storage has the advantages of fast construction, good efficiency, and high degree of mechanization, and is accepted and used by more and more users. After years of development, steel plate silo technology has been widely used in grain depots, ports, feed mills and light food processing industries across China.
Types and characteristics of steel silos
Steel silos are divided into three types according to different construction methods: spiral steel silos, bolt-assembled steel silos, and welded silos. Different warehouse types also have their own characteristics. The spiral steel plate warehouse has a short construction period and low cost, but the warehouse capacity is limited and cannot be disassembled. The bolt-assembled steel plate warehouse has a high degree of standardization and can be prefabricated in the factory; it is simple to assemble and has strong maneuverability; it has a long service life; it has a large storage capacity and a low cost. The disadvantage is that the sealing performance is slightly worse than that of the spiral steel plate silo, and the maintenance cost is higher. The welded warehouse has good air tightness, thick steel plate on the warehouse wall, high strength, high grain storage height, good corrosion resistance and long service life. Therefore, welded warehouses are often used in steel plate warehouses in coastal ports due to corrosion of steel plates by salt in the air. Due to high air tightness requirements, welded warehouses are often used in controlled atmosphere warehouses. But at the same time, welding warehouses also have the disadvantages of difficult construction, high cost, and long cycle.
The use of steel silos generally should also have supporting systems and processes such as grain entry and exit, ventilation, fumigation, grain condition measurement and control, cleaning, dust removal, loading and unloading, silo dumping, cooling, and riot prevention. These systems and processes provide guarantee for the safe grain storage of steel silos.
Current research shows that for storable grains such as wheat, the safe storage period of steel silos can be equivalent to the conventional storage period of room-type silos, and the optimal storage period is about 3 years. For rice, corn, etc., as long as the moisture is safe Within this range, the grain quality is good and there is no insect infection, and the longest storage period can be about 3 years. However, from the perspective of grain quality, the optimal storage period should be within two years.

Detailed Photos
Packed galvanized sheets are loaded into containers
The packaged galvanized elevator barrel is loaded into the container

Sweep Auger for Flat bottom Silo loaded into Container and fixed
Corridors ,derricks,Grain Cleaner, Pulse dust collector etc Shipping
Grain Steel Silo Production Process

Product Parameters

Popular Hopper Bottom Steel Silo Technical Specifications
Capacity	50Ton	100Ton	150Ton	200Ton	300Ton	500Ton	1000Ton	1500Ton
Model	TCZK 03605	TCZK 04507	TCZK 05507	TCZK 06406	TCZK 07307	TCZK 07313	TCZK 11010	TCZK 12811
Diameter(m)	3.667	4.584	5.500	6.417	7.334	7.334	11.000	12.834
Total Height(m)	9.56	12.53	13.25	12.85	14.70	21.42	20.95	23.51
Volume(m³) Density:0.75ton/m³	69	150	222	273	415	699	1346	2039

Popular Flat Bottom Steel Silo Technical Specifications
Capacity	1000Ton	1500Ton	2000Ton	2500Ton	3000Ton	5000Ton	8000Ton	10000Ton
Model	TCK 10014	TCK 11915	TCK 13715	TCK 15514	TCK 15518	TCK 18321	TCK 24718	TCK 25621
Diameter(m)	10.084	11.918	13.750	15.584	15.584	18.334	24.751	25.668
Total Height(m)	18.69	20.34	20.87	20.30	24.78	28.60	26.99	30.60
Volume(m³) Density: 0.75ton/m³	1335	2009	2701	2467	4145	6693	10879	13484

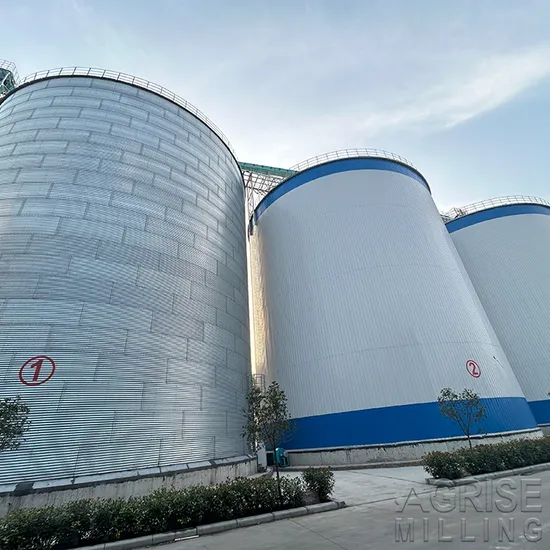

Sucessful Cases
Welcome to contact us for more professional solution and Competitive offer!

---
