Uni-T Ut105+ Ut107+ Automotive Multimeters

Product Description

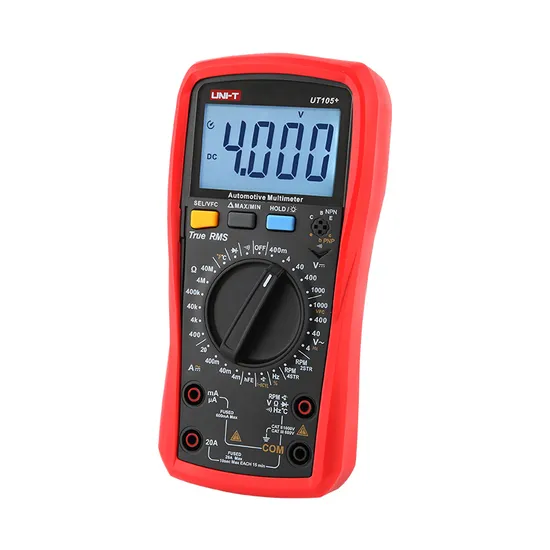

Product ParametersUT105+ and UT107+ Automotive Multimeters have updated measurement functions, accuracy, and meter shell to test conventional and hybrid vehicles. This series contains all the reliable functions of the traditional multimeter and offers RPM, dwell angle, pulse width, and battery test as well.
1000V AC/DC voltage and 10A AC/DC current (20A for 10s max) measurement range is suitable for most of the vehicle and electrical facilities maintenance. Up to 1000V VFC mode enables users to take accurate measurements on variable-frequency motor drives, water pumps, HVAC systems.UT105+ and UT107+ are both True RMS automotive multimeters that meet CAT II 1000V/CAT III 600V safety rating. UT105+ is designed for basic vehicle troubleshooting with 4000 counts display. UT107+ supports some extra functions, such as battery test, pulse width, capacitance with 6000 counts display. Specification

Specifications	Range	UT105+	UT107+
DC voltage (V)	400mV/4V/40V/400V/1000V	±(0.5%+3)
	600mV/6V/60V/600V/1000V		±(0.5%+3)
AC voltage (V)	4V/40V/400V/1000V	±(0.8%+3)
	6V/60V/600V/1000V		±(0.8%+3)
AC current (A)	4mA/40mA/400mA/10A (20A for 10s max)	±(1.0%+8)
	6mA/60mA/600mA/10A (20A for 10s max)		±(1.0%+8)
DC current (A)	4mA/40mA/400mA/10A (20A for 10s max)	±(0.8%+8)
	6mA/60mA/600mA/10A (20A for 10s max)		±(0.8%+8)
Resistance (Ω)	400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ	±(0.8%+3)
	600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ		±(0.8%+3)
Capacitance (F)	6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF		±(3%+10)
Frequency (Hz)	10Hz~10MHz	±(0.1%+5)	±(0.1%+5)
Temperature (ºC)	-40ºC~1000ºC	±(1.0%+3)	±(1.0%+3)
Temperature (ºF)	-40ºF~1832ºF	±(1.5%+5)	±(1.5%+5)
VFC	1000V	±(2.0%+10)	±(2.0%+10)
RPM	2STR	±(3.0%+5)	±(3.0%+5)
	4STR	±(3.0%+3)	±(3.0%+3)
Dwell angle	1CYL(0~356.4°)/2CYL(0~178.2°)/3CYL(0~118.8°)/4CYL(0~89.1°)/5CYL(0~71.3°)/6CYL(0~59.4°)/8CYL(0~44.5°)	±(3.0%+5)	±(3.0%+5)
Pulse width	999.9mS		±(1.5%+10)

Specification

Specifications	Range	UT139A	UT139B	UT139C	UT139S
DC voltage (V)	600V	±(0.5%+2)	±(0.5%+2)	±(0.5%+2)	±(0.5%+2)
AC voltage (V)	600V	±(1%+3)	±(0.8%+3)	±(0.8%+3)	±(0.8%+3)
DC current (A)	10A	± (0.7%+2)	±(0.7%+2)	±(0.7%+2)	±(0.7%+2)
AC current (A)	10A	±(1%+3)	±(1%+3)	±(1%+3)	±(1%+3)
Resistance (Ω)	20MΩ	±(1%+2)
	40MΩ		±(0.8%+2)
	60MΩ			±(0.8%+2)	±(0.8%+2)
Capacitance (F)	99.99mF		±(4%+5)	±(4%+5)	±(4%+5)
Frequency (Hz)	10Hz~10MHz		±(0.1%+4)	±(0.1%+4)	±(0.1%+4)
Temperature (°C)	-40°C~1000°C			±(1%+3)	±(1%+4)
Temperature (°F)	-40°F~1832°F			±(1.5%+5)	±(1.5%+5)
Features
Display count		2000	4000	6000	6000
Auto range/Manual range/True RMS		√	√	√	√
Bandwidth (Hz)		45Hz~400Hz	45Hz~1kHz	45Hz~1kHz	45Hz~400Hz
NCV/Continuity buzzer		√	√	√	√
Duty cycle	0.1%~99.9%		√	√	√
Diode		Around 2V	Around 3V	Around 3V	Around 3V
LPF/LoZ (ACV)					√
Analog bar					√
General Characteristics
Power	1.5V battery (R6) x 2
Display	58mm x 36mm
Product color	Red and grey
Product net weight	UT139A/B/C: 354g; UT139S: 345g
Product size	170mm x 80mm x 48mm
Standard accessories	UT139A/B: Batteries, test leads;UT139C/S: Batteries, test leads, temperature probe
Standard individual packing	Gift box, English manual
Standard quantity per carton	20pcs
Standard carton measurement	450mm x 330mm x 340mm
Standard carton gross weight	12.2kg
Optional accessory	UT139C: Current sensor AC/DC 40A
