Xk5040/5032 CNC Horizontal/Vertical Knee-Type Milling Machine

Product Description

Product Description

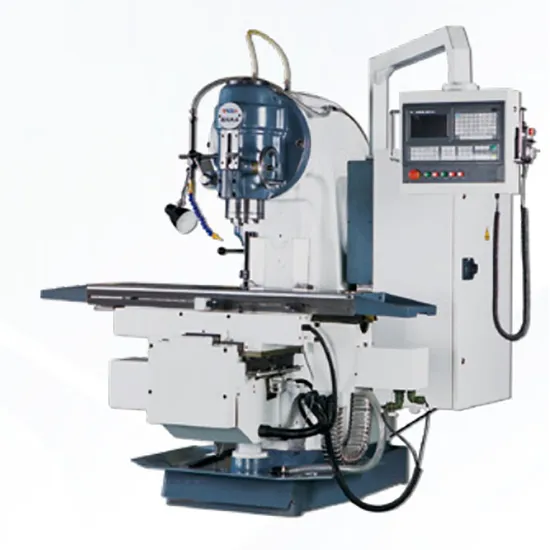

XK5040/5032 is CNC Knee-type vertical milling machine
XK6040/6032 is CNC knee-type Horizontal milling machine

Standard:
-GSK 980M,HNC 808M CNC controller

Optional:
-Fanuc Oi - MF Plus,KND2000M CNC controller
Product Parameters

Main specifications	unit	XK6032	XK6040	XK5032	XK5040
Table travelX/Y/Z	mm	800X350X280	920X380X330	800X280X330	920X330X450
Table size	mm	1230X320	1700X400	1320X320	1700X400
T-slot(width-No.-Distance)	mm	18-3-70	18-3-90	18-3-70	18-3-90
Max.table load	ka	320	500	320	500
Distance from spindle nose to table surface	mm	20-370	30-410	60-390	50-500
Distance from column vertical guideway to the center of table	mm	225-505	275-625
Rapid feed speed(X/Y/Z)	mm/min	6000/3000/6000	6000/3000/6000	6000/6000/3000	6000/6000/3000
Cutting feed speed(X/Y/Z)	mm/min	6000-3200/3-1600/6-3200	6-3200/3-1600/6-3200	6-3200(3-1600)	6-3200(3-1600)
Spindle taper		ISO 50(7:24)	ISO 50(7:24)	ISO 50(7:24)	ISO 50(7:24)
Spindle speed range	rpm	30-1500(18 steps)	30-1500( 18 steps)	30-1500( 18 steps)	30-1500( 18 steps)
Spindle motor power	kW	7.5	11	7.5	11
Max. spindle torque	N.m	1000	1000	1000	1000
Longitudinaltransverse feed motortorque (X/Z)	N.m	12/12	12/12	12/12	12/12
Vertical feed motor torque(Y)	N.m	22	22	22	22
Machine weight	kg	2800	3850	2800	4250
Machine overall size	mm	1929X2055X1960	2310X2200X2394	1929X2055X1960	2310X2200X2394

---
