US$42,000.00-65,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Concrete Mixing Plant
Machining Process
Hydraulic
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000, CE
Name

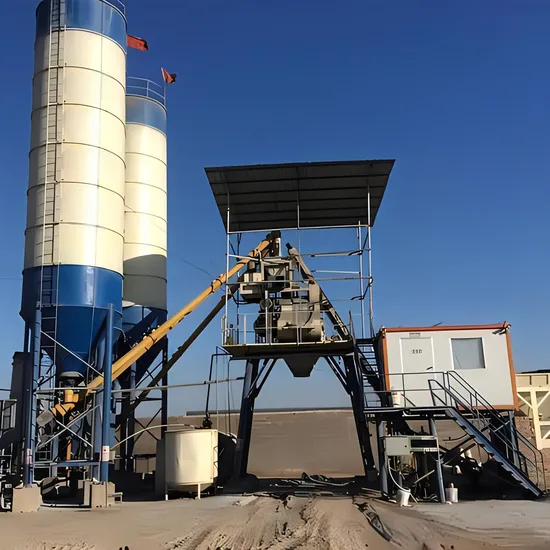

Concrete Mixing Plant
Transport Package
Container Transportation
Production Capacity
5000 Pieces/Year
Product Description
Product Description
| | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS100 | HZS120 | HZS150 | HZS180 |
| Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2000 | 2500 | 3000 |
| Charging Capacity(L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 3200 | 4000 | 4800 |
| Maximum Productivity(m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
| Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | belt conveyor | Skip Hopper | belt conveyor | belt conveyor | belt conveyor | Skip Hopper | belt conveyor |
| Standard Discharging Height(m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 3.8~4.5 | 4.5 | 4.5 |
| Number of Species of Aggregate | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 | 4 |
| Maximum Aggregate Size(mm) | ≤60mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤120mm | ≤120mm | ≤150mm | ≤180mm |
| Cement/Powder Silo Capacity(set) | 1×100T | 2×100T | 3×100T | 3×100T | 3×100T | 3×100T | 4×100T or 200T | 4×100T or 200T | 4×200T | 4×200T |
| Mixing Cycle Time(s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
| Total Installed Capacity(kw) | 60 | 65.5 | 85 | 100 | 145 | 164 | 188 | 210 | 230 | 288 |
Trend Of Future Concrete Mixing Plants
Leveraging decades of profound understanding of concrete mixing technology, Recolte has independently developed the new R series electric concrete mixing stations, specifically designed for concrete mixing. We conducted a comprehensive study of the world's most advanced mixing technologies, identifying key features that optimize mixing performance in an industrial environment. Based on these insights, we synthesized this information to lay the foundational principles of our product design. Company Profile
Detailed Photos
Certifications
FAQ
>>
