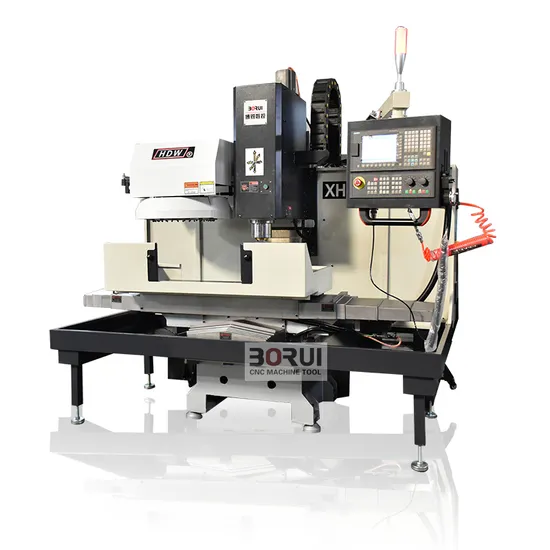

Xk7132 China Low Price Vertical CNC Milling Machine

Product Description

Xk7132 China Low Price Vertical CNC Milling Machine Product Description
Application: Standard configuration:
1.The CNC system: KND,GSK,Fanuc and etc.
2.The knife: The famous Taiwan tools changer
3.The weight: Wuxi Xieqing nitrogen balance
4.The high quality castings: Resin sand casting
5.The spindle: Taiwan famous high speed spindle
6.The Internal protection: Total or half protection
The main performance characteristics:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of
machine on heavy cutting
3.The pretension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Application:
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widely used in aerospace, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries. Product main technical parameters:

CNC milling machine	XK7124	XK7126	XK7132	XK7136
Table size	800x240	800X260mm	800x320	1250x360
Max. table load	200kg	200kg	300kg	400kg
T slot qty-width*distance	3-14x75	3-14x75	3-14x110	3-14x80
spindle speed	60-8000 r p m	60-8000 r p m	60-8000 r p m	60-8000 r p m
spindle nose to table surface	60-460	125-500mm	125-520mm	120-580
Spindle center to Column surface	300	315mm	360	460
Spindle taper	BT30	BT30/BT40	BT30/BT40	BT40
Main motor power	3.7kw(servo)	3.7kw (servo)	3.7kw (servo)	3.7kw (servo)
X axis travel	400mm	460mm	500mm	900mm
Y axis travel	240mm	300mm	320mm	360mm
Z axis travel	400mm	400mm	400mm	460mm
X/Y/Z axis rapid feed	6m/min	8/8/6m/min	8/8/6m/min	5/5/4m/min
Positioning accuracy	±0.01mm	±0.01mm	±0.01mm	±0.01mm
Repeatabeility accuracy	±0.005mm	±0.005mm	±0.005mm	±0.005mm
Net Weight	1800kg	22000 kg	2650kg	2800kg
Overall Dimension	1840x1520x2000	1900X1620X2000	1900x1800x2100	2220x1850x2250

Main parts list:

arts	Brand
Bearings	JAPAN NSK
Ball screw	TAIWAN HIWIN/PMI
Linear guideway	TAIWAN HIWIN/PMI
Spindle	TAIWAN SHUENN-JIA/POSA
Tool magazine	TAIWAN CHEN SOUND/H.D.W.
Spindle motor&driver	CHINA top-CTB(KND)
Feeding driver&motor	CHINA top(KND-1000MI)
Air-oil cylinder	TAIWAN
Pneumatic parts	TAIWAN AIRTAC
Electric parts	TAIWAN TECO or JAPAN OMRON
Lubrication pump	CHINA top

Standard Configuration:
·KND-1000MI
·X/Y/Z axes SIEMENS servo motor&driver
·Servo spindle motor&driver
·10T FUNNEL type tool magazine
·Full closed cover
Optional configuration:
·SIEMENS 808D BASIC/828D CNC Controller
·16T DISC type tool magazine
·4th axes(NC Dividing Head)
Detailed Photos
