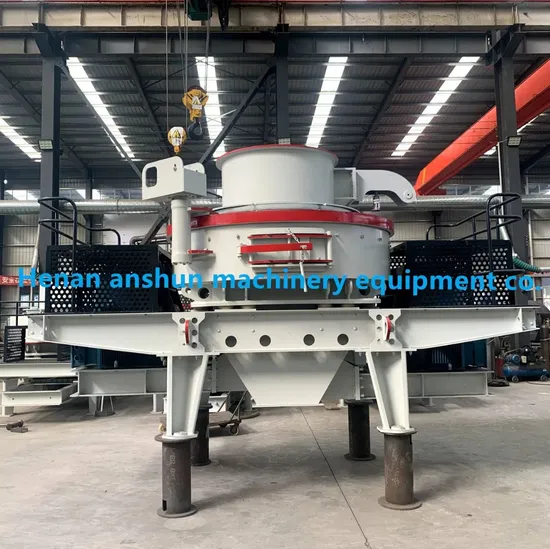

Industrial Quartz Sand Crusher Machine 5X Series Sand Maker Equipment

Product Description

Product Description
5X Sand Making Machine is our company's latest-generation product, with the latest technology from Germany, and it has several independent patent rights. It is a model of the perfect combination of professional crushing technology and mechanical manufacturing and a full embodiment of new technologies and new processes. It can not only provide the highest quality sand and gravel aggregate for highways, high-speed railways, high-rise buildings, municipal projects, hydropower dam construction, port terminals, concrete mixing stations, etc., but has also become the undisputed core of the machine-made sand industry and stone shaping fields. Equipment has increasingly become mainstream in metal ore crushing, quartz sand production, steel slag processing, and other fields. The 5X series high-efficiency centrifugal impact crusher is a new high-efficiency crushing machine recognized worldwide.

Model		5X7615	5X8522	5X9532	5X1145
Capacity(t/h)	Feed at Center & Sides	150~280	240~380	350~540	500~640
	Center Feeding	70~140	120~200	180~280	250~640
Best Feed Size(mm)	Soft Material	35	40	45	50
	Hard Material	30	35	40	45
Rotating Speed(t/min)		1710~1900	1530~1700	4280-1550	1200~1390
Motor Power(Kw)		2×75	2×110	2×160	2x220
Dimension(L×WxH)(mm)		4100×2330×2300	4100×2500×2700	4560×2600×2900	5000×2790×3320
Power Source		380v,50Hz
Thin Oil Lubrication Station	Oil Pump Motor Power	0.75kw
	Security Protection	Dual oil pump complementary oil supply; Automatic shutdown without oil flow; Air cooling; Winter motor heating starts
	Oil Tank Heating Power	2KW
	LxWxH(mm)	820×520×1270
Note: Production capacity is measured based on medium-hardness limestone. At the same time, it is also affected by factors such as particle size, moisture content, and material properties.

Performance Features
1. After the optimized design of the deep cavity rotor, the material throughput is increased by about 30%.
2. After the partially worn peripheral guard plate, it can be turned up and down to improve material utilization and extend the service life by more than 48%. The wear-resistant block combined design only needs to replace the worn parts, which can reduce the use cost by more than 30%.
3. The core wear-resistant materials are highly wear-resistant and high-temperature materials used in important industries in the United States.
4. Use diamond-shaped impact blocks to avoid damage to the vertical plate after material impact and wear.
5. The optimal launch port and smoother curved design inside reduce the flow resistance of materials and greatly improve the material passing capacity.
6. Dual-purpose bulk material tray is easy to operate and can easily switch between two feeding methods.
7. The special sealing structure at the lower end of the spindle ensures that oil will not leak without an oil seal.
8. The hydraulic cover opening device using originally imported accessories can move the upper cover conveniently and quickly, saving labour and effort when replacing and repairing internal parts of the machine body.
9. Choose motors with high protection levels. This type of motor has the characteristics of high efficiency and low noise. Comply with International Electrotechnical Commission (IEC) standards, Class F insulation, IP54/55 protection level.
Working Principle

5X sand maker adopts central feeding and central cascade feeding way, which can be changed based on customers' needs.1. Central feeding:Raw materials fall down into the feeding hopper, then enters the impellor through central entrance inlet, thus the material being accelerated by the high-speed impellor and being thrown out at the speed of 60-75m/s. It is crushed when hitting the impact plate, and the end products comes out from the discharging outlet.2. Ring feeding: Raw materials fall down into the feeding hopper, and the materials are divided into two parts by a special plate. Some materials enter the impellor through the center of the plate and the other part of materials falls down from outside of the plate. The materials thrown out earlier crush the materials down from outside, thus the materials crushed and re-crushed.
Applicable Materials
1. Pebble, Rock( the limestone, granite, basalt, aluminum, designate, etc.), Ore tailing, artificial sand production.
2. Building aggregate, highway, cushion, asphalt concrete and cement aggregate production.
3. Sand making and stone reshaping are produced in the water conservancy and hydro-power engineering fields, highways, railways, bridges, passenger lines, airport runways, municipal engineering, and high-rise buildings.
4. The grinding anterior finely process of mining areas. Building materials, mining, metallurgy, chemical industry, cement,
abrasive, refractory material, etc.
5. The crush of high abrasive materials resistance and secondary disassembly, depressurization of thermal power and metallurgy, slag and construction waste.

6. The production of glass, quartz sand and other high-purity materials.
Company Profile
Henan ANSHUN Machinery Equipment Co., Ltd. is a modern enterprise that integrates research and development, production, sales, and service of mining crushing, construction sand and gravel aggregate, and crushing and sand making. As one of the first companies to pass the ISO9001 quality certification system and an EU CE-certified company, the company produces and sells products to Southeast Asia, Central Asia, Africa, the Middle East, and other countries and regions. The perfect after-sales service management system has made the company′s products recognized and praised by the industry. The ANSHUN brand is well-known at home and abroad and has become a shining pearl in the mining machinery manufacturing industry.


Packaging & Shipping

Certifications

FAQ
Support:We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.After-sales service support :After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.Technological support :ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.

---
