| US$29,500.00 | 1 Piece (MOQ) |

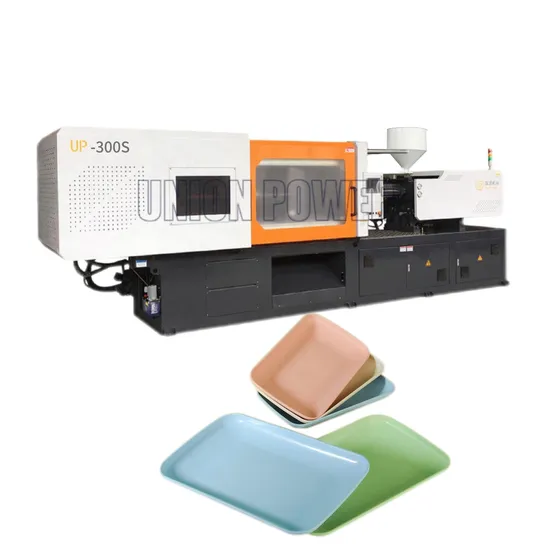

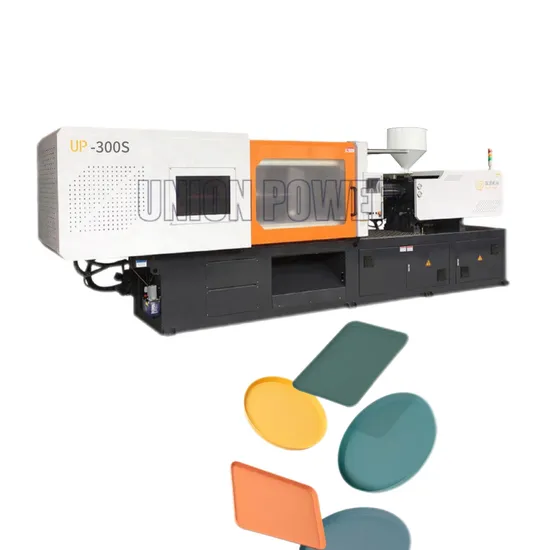

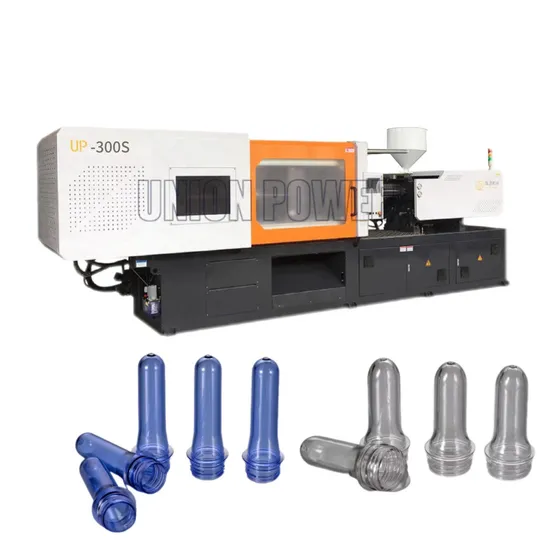

| Technical Parameters | Model UP-300T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 60 | 65 | 70 |
| Shot Volume (cm3) | 806 | 946 | 1096 |
| Injection weight (g) | 725 | 851 | 987 |
| injection pressure (Mpa) | 170 | 145 | 107 |
| Screw speed (rmp) | 220 | ||
| Clamping Unit | |||
| Clamping force (KN) | 3000 | ||
| Open stroke (mm) | 600 | ||
| Max Mold height (mm) | 620 | ||
| Min Mold height (mm) | 200 | ||
| Space between tie bars(mm) | 620*620 | ||
| Ejector force (KN) | 70 | ||
| Ejector stroke (mm) | 150 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 30(29) | ||
| Heating power (KW) | 18.5 | ||
| Machine dimension (M) | 6.3*1.75*2.37 | ||
| Machine weight (T) | 9.3 | ||
| Oiltank cubage (L) | 400 | ||
