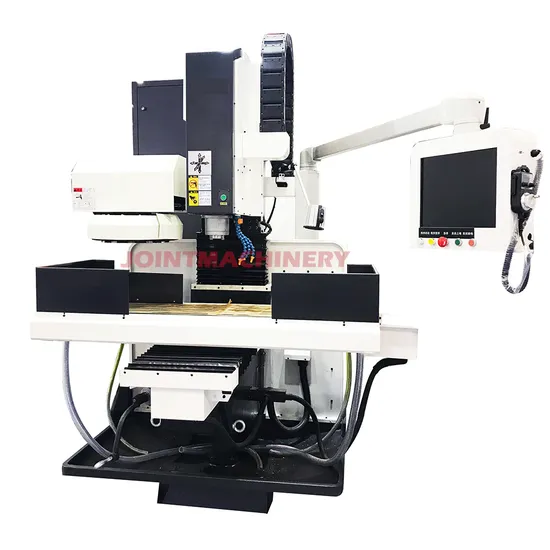

3 Axis Vertical Milling Machine with Lift Worktable 3HP Spindle Motor

Product Description

√ Suitbale for household and daily necessities mold processing.
√ Excellent accessories, strict quality control, long durability.
√ Hard-grinding guide way, thick machine body, effctive casting, the whole machine is durable.
√ Milling head key parts from Taiwan, bearings from Chinese famous brand.
√ High efficiency, strong cutting machine performance.
WOKRTABLE Ultra-audio quenching, precision grinding and scraping guide. Rotary table is optional.
TURRET MILLING HEAD Turret milling head can swivel 45° (forward-backward), rotate 90° (left-right). Easy to mill at special angle.
SPINDLE High precision R8/NT30/NT40 spindle, spindle runout:0.003mm
X/Y/Z AUTO FEED X/Y axis auto feed, Z axis electric lifting, improve machining efficiency.
DRO Based on customer needs, optional 2-axis DRO or 3-axis DRO.

3 Axis Vertical Milling Machine with Lift Worktable 3HP Spindle Motor

Item		Unit	4KJ-B
Table size		mm	1270*254*90
T slot (W*N*D)		mm	16*3*65
Travel	Longitude(X)	mm	730
	Crossward(Y)	mm	340
	Vertical(Z)	mm	115
Knee travel		mm	340
Max diatance from the spindle nose to table		mm	400
Spindle rated power		HP	3HP (2.2kw)
Spindle taper			R8/NT30
Rotation speed		rpm	80-4530 (16 grades)
Rapid feed (X/Y/Z)		m/min	8/8/8
Cutting feed		m/min	5
Dimension		mm	1500*1700*2150
Net weight		kg	1400

Shenzhen Joint Machinery Co., Ltd. stands as a beacon of excellence in the manufacturing and exportation of CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, grinding machines, and more. Our unwavering commitment to high-quality machines and exceptional customer service positions us as leaders on the global stage. We focus on rigorous control and enhancement of our machine quality, ensuring they meet and exceed the highest industry standards. Our machines integrate cutting-edge core technologies from Taiwan and Germany, coupled with advanced production equipment and processes, to deliver unmatched product quality and reliability. Known for their superior performance in precision, stability, and dependability, our machines adeptly handle complex and high-demand machining requirements. With a worldwide export footprint, our products have earned widespread recognition and popularity, serving markets across Asia, Europe, South America, North America, and beyond. We have cultivated long-term partnerships with clients from diverse regions, together generating significant business value.

---
