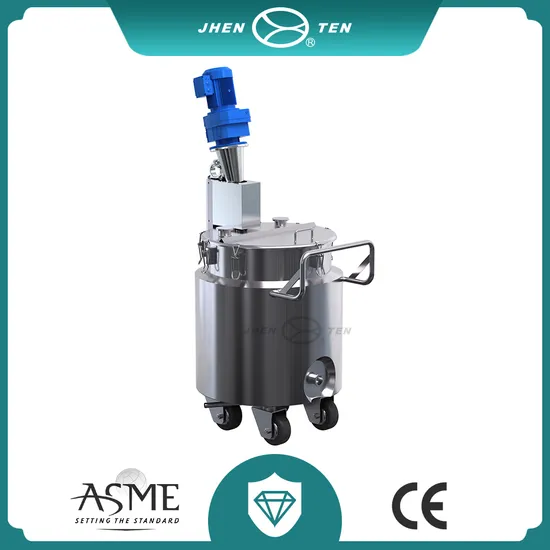

Stainless Steel 304 Liquidificador Blender Soap Making Equipment Mixing Tank

Product Description

Introduction
Magnetic Stirring Tank strictly follow the Article 31, 32 of GMP general rules "Good Manufacturing Practice" (Revised in 2010), to design, produce and inspect according to the requirement of "Pressure Vessel"(GB150-2011) and "Steel welded atmospheric pressure vessels"(NB/T 47003.1-2009)
Magnetic Stirring Tank adopts Vertical circular tanks, both of top and bottom are standard oval and torispherical head. Transition section in tank using circular arc transition, without dead corner, easy to clean. Single layer, double layer(insulation for tank and bottom head) or Jacket(tank and bottom head have jacket and insulation), equipped with magnetic stirring can implement CIP and SIP, according to customers' requirement.

Tank Optional Configuration

The body of Magnetic Stirring Tank can chose sterile air filter, thermometer(Digital display or Dial type), PH meter, pressure gauge, steam sterilization hole, sight glasses, sanitary manhole, liquid in-outlet, CIP Universal rotating cleaning ball, liquidometer and Liquid level control system(Bearing module, non-contact ultrasonic, static pressure transmitting device) and so on, also can configure as customers' requirement.

Feature

• Volume:100L~5000L and multiple specification, also can design and manufacture according to customers' requirement. • Jacket can pass steam (or hot water), can also pass the cooling water. Jacket has disk tubular, full jacketed and Maitreya plate. Jacketed outside covered with insulation, thermal insulation material for rock wool (warm) or PU (cold). • The connection adopts Tri-clamp, the tanks' inner use 304 or 316L. The inner surface mirror polishing Ra≤0.28μm~0.6μm, outer surface can polishing, wire drawing and sandblasting according to customers' requirement. • Using bottom magnetic stirring, special designed stirring paddle, The best revolving speed range should be 20r/min~400 r/min, Can be suitable for mixing different medium.

Application
• Can be a Storage Tank, mixing tank, temporary Storage Tank, mixing tank, etc., Used in liquid materials' mixing and storage such as food, dairy products, fruit juice beverage, pharmaceutical, chemical and biological engineering.

Design parameter
Design pressure	Barrel according to customers' requirement(0.02MPa~0.8MPa) Jacket according to customers' requirement(0.02MPa~0.5MPa)
Design temperature	Barrel and Jacket according to customers' requirement(0ºC~160ºC)
Material
Liner	304,316L
Jacket	304
Insulation	Rock wool (keep warm) PU (cold insulation)
Feet	304
Connection
In-outlet	Quick open, Flange
Surface Finish
Finish Type	Mechanical polishing, electrolytic polishing, sand blasting, pickling
Polishing precision	Inner wall 0.28μm,outer wall 0.6μm

Normal Model And Main Technical Parameters
Parameters		Model	JTRCL-150	JTRCL-300	JTRCL-500		JTRCL-800		JTRCL-1000
Effective volume:L			150	300	500		800		1000
Body	Diameter:mm		Φ550	Φ750	Φ900		Φ1000		Φ1100
	Height:mm		650	700	650		1000		1000
Agitator	Power:kW		0.14	0.25	0.75		0.75		1.5
	RPM:r/min		20~400(The design can be adjusted according to customer use condition)

The above-mentioned data is the standard, for reference only.It can customize according to customer's requirements. Tank Optional Configuration
The body of stainelss steel sanitary reactor can chose sterile air filter, thermometer(Digital display or Dial type), PH meter, pressure gauge, steam sterilization hole, sight glasses, sanitary manhole, liquid in-outlet, CIP Universal rotating cleaning ball, liquidometer and Liquid level control system(Bearing module, non-contact ultrasonic, static pressure transmitting device) and so on, also can configure as customers' requirement.
Application
• Apply to oil, chemical, rubber, pesticide, dye, medicine and food, to complete the sulfide, hydrogenated, alkylation, polymerization, condensation process

Feature
• Volume: 600L~20000L and multiple specification, also can design and manufacture according to customers' requirement.
• Jacket can pass steam (or hot water), can also pass the cooling water. Jacket has disk tubular, full jacketed and Maitreya plate. Jacketed outside covered with insulation, thermal insulation material for rock wool (warm) or PU (cold).
• The connection adopts Tri-clamp, the tanks' inner use 304 or 316L. The inner surface mirror polishing Ra≤0.28μm~0.6μm, outer surface can polishing, wire drawing and sandblasting according to customers' requirement.
• Agitation adopts top or side mechanical agitation. Stirring methods(Push type, anchor, etc) can be selected. The best RPM is about 200r/min(push type) or 60r/min(anchor type).
• The sealing of agitating roller adopts sanitary mechanical seal. The mixing motor can use Cycloidal reducer, stepless speed reducer. These items can be selected according to customers' requirement. (Frequency control is widely used)

Design Parameter
Design pressure	Tank body (ATM-1.0MPa)
	Jacket (ATM-0.5MPa)
Design temperature	Tank body and Jacket (0ºC~160ºC)
Material
Liner	304, 316L
Jacket	304
Insulation	Rock wool or PU
Legs	304
Connection
In-outlet	Tri-clamp, Flange
Surface Finish
Finish type	Mechanical / electrolytic polishing, sand blasting, pickling
Polishing precision	Inner surface Ra≤0.4um
	Outside surface Ra≤0.6um

Company Profile

Projects

Exhibition
QC process
cooperative partner
FAQ

Q: CAN I HAVE SAMPLES TO TEST?
A: Yes, we are pleased to supply samples to test and check quality, miled sample order is available. Please note, free samples is not acceptable.

Q: DO YOU HAVE ANY MOQ LIMITED?
A: Our MOQ is 1PC to supply new customers.

Q: WHAT'S THE LEAD TIME?
A: Sample: 20-25days. Mass production: 25-30days depend on the order quantity.

Q: HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE?
A: We ususlly ship by sea. DHL, UPS, fedex TNT are also acceptable.

---
