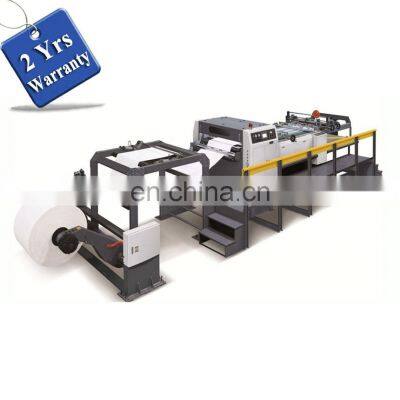

UCM1400 Two Reel Automatic Paper Crosscutting Machine Web Roll Cutter with Rotary Blade (300m/min)
Videos
Video demonstration only for reference
Video 01: /watch?v=vBYSd4QU3gc
Video 02: /watch?v=BJqjDosA0r4
Video 03: /watch?v=ttnm7LbbmtM
Video 04: /watch?v=vjoWai_JQ5g
Product Description
Description:
Servo Precision high speed die cutting machine takes the advanced technology of Germany. The machine computer control system takes AC Servo motor and AC transducer. The conveyor belt takes NITTA from Japan. The pneumatic vibrator takes FINDEVA from Switzerland. The electrical system adopts SCHNEIDER & OMRON which leads to the speed of cutting paper much more fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The controller of soft-touch computer screen is simple and convenient to operate. The anti-curve rack assures the paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry. It can improve the efficiency and benefit of your work.
Parameter:
Model: UCM1100/1400/1700/1900A
Cutting Mode: The top knife cuts reciprocally and the down knife is fixed
Paper Cutting Thickness: 60-500GSM
Cutting Precision: +/-0.5mm for cutting length 1000mm
Max Cutting Frequency: 300 cutting stroke/min
Max Cutting Speed: 300m/min
Cutting Range: 450-1650mm
Max Unwinding Diameter: 1800mm
Max Paper Cutting Width: 1100mm/1400mm/1700mm/1900mm
Gross Weight: 9000Kg/11000Kg/13000Kg/15000Kg
Features:
1,High speed rotary cutting knife
2, elimination system
3, Middle slitting and waste collection system
4, Automatic counting and label inserting device
5, Paper transporting equipment
6, Automatic paper trimming and collecting system
7, Electric control unit
8, Double arm oil hydraulic shaftless mill roll stand
9, Automatic paper tension controller
10, Automatic vacuum system
11, Web guiding system
12, Photo senor registration tracking system
13, LCD control panel
14, AC servo motor
Detailed Images
Optional Parts:
1. Web Guiding System:
2. Eye Photocell Registration: (Only For Printed Paper)
3. Manuel Slitting System with Side Trimming
4. Pneumatic Slitting System with Side Trimming
5. Label inserting device
6. Automatic tension controller
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
Certifications
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
