Free Shipping Lithium Battery 0.5 Ton 1ton1.5ton 2ton 3ton Warehouse Dock Cargo Electric Forklift Handling Battery Forklift CE

Product Description

Dear customers:
We have a warehouse in Chicago, USA. You can choose to pick up the goods by yourself, reduce the shipping cost and enjoy discounts. Please contact us for details. Thank you~
We are a factory. If you have additional accessories or customized requirements for mechanical products, please contact customer service for details~
about Us We are a production factory, support all kinds of customization, customize the design you want
Export services to more than 70 countries around the world, we have more than 40 large partners in different countries, we provide
Cheap Chinese precision manufacturing handling equipment
Welcome to send us inquiries
All models of electric forklifts can be customized
We can also provide you with diesel forklifts, natural gas forklifts, electric stacker forklifts and other products
Norman can meet the needs of most customers and try our best to help customers do more business in the market
Welcome to contact suppliers for exclusive services and preferential prices

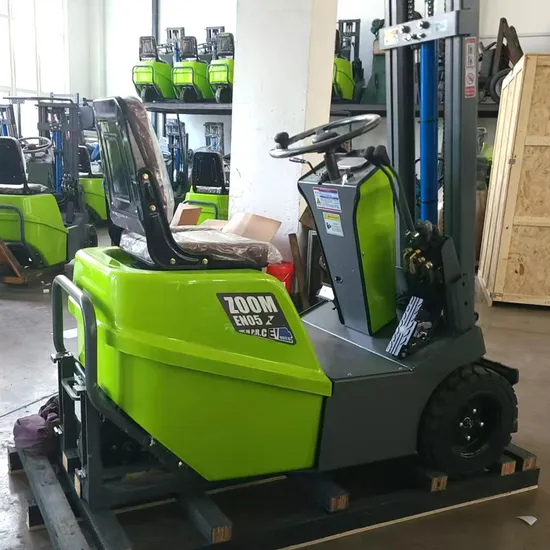

Product Description This 0.5 ton forklift has been refined in size and uses finite element software for static and dynamic balance simulation tests; laser cutting, CNC bending and a series of fixtures are used to ensure product safety and reliability, achieving the 4s goal: solid, safe, stable and stylish.
Now the product has been innovated to the fifth generation and has a national patent. The main performance accessories are selected
from domestic first-class products; the forklift has been sold nationwide and exported to Southeast Asia, South Asia, the United States, South America and other regions.

Rated lifting capacity		kg	500
Load center distance		mm	500
Maximum lifting height		mm	2100		Can be customized up to 2500mm
Gantry tilt angle (front/back)		degree	6/6
Minimum turning radius		mm	950
Climbing angle		%	16
Dimensions	Length (without fork)	mm	1550
	Length (with fork)	mm	2300
	Width	mm	780
	Height	mm	1580
Standard fork length		mm	750		Customizable
Fork thickness		mm	40
Minimum ground clearance		mm	120
Front tire model and material		Solid rubber	400*100
Rear tire model and material		Solid rubber	300*100
Battery		Voltage V	48
		Capacity AH	45
Weight		kg	720
Battery life		h	5
Charging time		h	6-8
Drive motor power		kw	1.5
Boost motor power		kw	2.5
Travel speed		km/h	8
Braking mode			Drum brakes
Steering mode			Steering wheel
Roof					Customizable

1. All performance parts (axle, controller, electronic throttle, multi-way remote control valve, steering switch) are purchased at the electric car level, not the low-priced agricultural three-wheel level; the lifting mechanism uses special parts for engineering machinery, which doubles the customer's service life.
2. 100% of the structural parts are laser cut and CNC bent, and a series of tooling is used for assembly welding to ensure welding strength and appearance quality
3. The whole machine is designed with three-dimensional software, and the stress is also analyzed by computer. The whole machine operates flexibly, there is no internal stress, that is, no internal friction, which maximizes the reduction of machine wear and energy consumption
4. The minimum turning radius of the whole network is only 0.95 meters, which can completely solve the problem of narrow space operation; the dead weight is only 710 kilograms, and it can be operated on the stairs.
5. The whole machine is sandblasted and painted once to ensure that it will not rust for a long time
Customer feedback Real use from customers, high quality wins everyone's love

---
