Hot Coal Mobile Stone Concrete Jaw Rock Crusher for Sale

Product Description

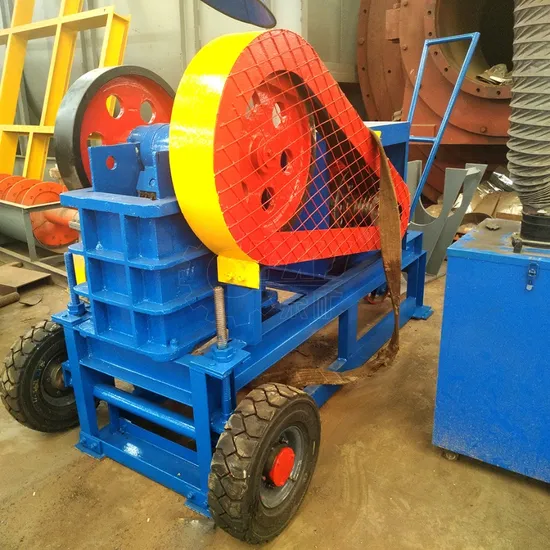

Hot Coal Mobile Stone Concrete Jaw Rock Crusher For Sale
Jaw Crusher is a compression-type machine that crush material between a moving piece of steel and a stationary piece of steel. They are used for primary and sometimes secondary size reduction.
The goals of the size reduction are as follows:
1.Obtaining the size or surface area required for the use of the ore or material
2.Allowing ease of transportation and storage
3.Separating the different minerals contained within the ore and to release them from and another
4.Obtaining the size or surface area required for the enrichment stage.
In general, crushing is carried out in three stages,depending on the desire size of thematerial.
Spare parts
1.China Famous 3-Phase Motor
High efficiency and energy saving (IE2 of IEC60034-30 and Level 3of GB18613-2012)2. Jaw Plate
Good in blasted rock,sharp tooth and more wearable Mn-steel than other3.Toggle Plate
High-strength toggle plate to better transmit the crushing force to the back of body frame.
Parameters

Model	Feed opening (mm)	Max. feeding size (mm)	Adjusting range of discharge opening (mm)	Processing capacity (t/h)	Rotation speed of eccentric shaft (r/min)	Motor power (kw)	Total weight (t)	Dimensions (L×W×H) (mm)
PE-150×250	150×250	125	10-40	1-3	250	5.5	0.8	720×660×850
PE-200×300	200×300	180	15-50	2-6	260	7.5	1.2	910×750×990
PE-250×400	250×400	210	20-60	5-20	300	15	2.8	1300×1090×1270
PE-400×600	400×600	340	40-100	16-60	275	30	7	1730×1730×1630
PE-500×750	500×750	425	50-100	40-110	275	55	12	1980×2080×1870
PE-600×900	600×900	500	65-160	50-160	250	55	17	2190×2206×2300
PE-750×1060	750×1060	630	80-140	110-320	250	110	29	2660×2430×2800
PE-800×1060	800×1060	640	130-190	130-330	250	110	29.8	2710×2430×2800
PE-870×1060	870×1060	660	200-260	190-336	250	110	31.5	2810×2430×2800
PE-900×1060	900×1060	685	230-290	230-390	250	110	33	2870×2420×2940
PE-900×1200	900×1200	750	95-165	220-450	200	110	52	3380×2870×3330
PE-1000×1200	1000×1200	850	195-265	315-500	200	110	55	3480×2876×3330
PE-1200×1500	1200×1500	1020	150-350	400-800	180	160-220	100.9	4200×3300×3500
PE-1500×1800	1500×1800	1200	220-350	500-1000	180	280-355	122	5160×3660×4248
PEX-150×750	150×750	120	18-48	8-25	320	15	3.8	1200×1530×1060
PEX-250×750	250×750	210	25-60	13-35	330	22	5.5	1380×1750×1540
PEX-250×1000	250×1000	210	25-60	16-52	330	30	7	1560×1950×1390
PEX-250×1200	250×1200	210	25-60	20-61	330	37	9.7	2140×1660×1500
PEX-300×1300	300×1300	250	20-90	16-105	300	55	15.6	2720×1950×1600

Packing and Shipping
Packing Detail
Standard containers,bare main machine, motors and small parts are packed in wooden cases.
Delivery Detail
Within 45 days Qingdao,Shanghai,Tianjin and other ports.
Revelant Products Jaw Crusher with conveyor Mobile Lifted Diesel Jaw Crusher
Mobile Diesel Jaw Crusher Mobile Diesel Jaw Crusher with Screen

Diesel Hammer Crusher Hammer crusher with motor Cone Crusher
Advantages a. High efficiency with uniform particle size.b. Simple structure, and easy to operate, reduce the operation cost.c. Crushing chamber is deep and has no dead space, which helps improve the feeding capacity and productivity.d. Adjustment device of gasket type discharging end is reliable and convenient to use.e. The discharging end has wide adjusting range which can increase the flexibility of our equipment.f. Lubrication system is safe and reliable.g. Over loading protection.h. Accessories are convenient to replace, and little maintenance is needed.Working PrincipleA jaw crusher mainly works on the principle of reciprocating motion exhibited by the moveable jaw of the jaw crusher. The repeated movement of the jaws results in the development of compression force that further causes the breakdown of the rock or the ore placed between the two jaws into smaller pieces. The movement of the jaw crusher is typically known as the chewing movement of the machine.
ApplicationJaw Crushers are used in various applications, from construction to mining and materials processing. Some common uses for jaw crushers include:
1. Breaking up large rocks into smaller pieces for construction projects.
2. Separating minerals from ore to extract valuable metals like gold or silver.
3.Recycling materials like glass,plastic,or rubber that would otherwise end up in landfills.
4.Pulverizing rock samples for scientific research or analysis.
There are many potential uses for jaw crushers, making them a versatile and valuable tool for any industry that involves crushing rocks or other materials.Whether you need to process construction materials,recycle old materials.or extract valuable minerals from ore,a jaw crusher can help you do the job quickly and efficiently. Crush SiteCompany Profile
Henan Xingyang Mining Machinery Manufacturer is professional manufacturer for stone crushing machine and mining processing machine from 1956. Our machines are widely used in mining, smelting, building materials, road construction, water conservancy and cement industry. Rich experience make us know well what you need. We can help you to set up full set of mineral processing equipment from 30TPD-3000TPD.
Meanwhile, We have four casting factories that specialize in producing wearing parts for our clients. If your machine are not manufactured by our company, please provide us the wearing parts drawing.

---
