Box-Type Square Column Drilling Press Machine

Product Description

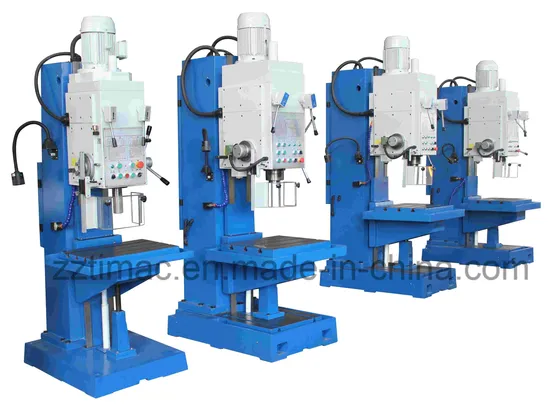

Vertical Knee-Type Box-Column Drilling Machine
SD63B SD-80C SD-100
Features:
Superior rigidity for demanding drilling, reaming and thread-cutting tasks.
Box-column design provides high load capacity, and is torsion proof and rigid.
Table and drill head can be moved individually for an optimum machining height.
9-steps feed and speed gears, with oil-bath lubrication.
High torque across the entire speed range.
Thread cutting unit automatically reverses upon reaching the preset depth.
Technical Parameter:

Specification	Unit	SD-63B	SD-80C	SD-100
Drilling capacity in steel	mm	63	80	100
Feed force	N	30000	30000	40000
Torque	N.m	800	800	1150
Spindle taper	-	Morse No.5	Morse No.6	Morse No.6
Distance from spindle center to column surface	mm	375	375	480
Spindle quill travel	mm	250	250	310
Drilling head travel	mm	250	250	300
Spindle speed range	rpm	40-570(9steps)	40-570(9steps)	26-320(6steps)
Spindle feeds	mm/r	0.1-0.78(6steps)	0.1-0.78(6steps)	0.096-0.717(6steps)
Vertical table travel	mm	300	300	300
Table setup area	mm	650x550	650x550	760x650
T-slot width/number	mm	-	-	-
Max. distance from spindle nose to table	mm	800	800	850
Main motor power	kw	5.5	5.5	7.5
Coolant pump	W	90	90	90
Flow rate	L/min	25	25	25
Overall dimension(LxWxH)	mm	1452x965x2787	1452x965x2787	1465x970x3170
Machine weight	kg	2500	2500	3500

Standard Configuration:
Coolant system
Tapping feature
Halogen work lamp
Operating tools
Operator manual
Optional Configuration:
Universal facing and boring head
Coolant concentrate
Accessory set MT4(8pieces)
Reducing sleeve MT5/4
Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
