US$18,500.00-26,400.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
External Grinding Machine
Processing Object
Cylinder
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Max. Workpiece Length
750mm
Distance Between Centers
520mm
Grinding Wheel Speed
1820rpm
Overall Dimension
2370*1400*1250mm
Transport Package
Ship/Train
Production Capacity
1000pieces/Year
Product Description
Product Description
Product Features
1. This machine tool is suitable for grinding the outer circle, inner circle, and end face of cylinders and cones of small and medium-sized parts.
2. The machine tool workbench, head frame, grinding wheel frame and other components can all rotate at a certain angle.
3. The head frame adopts mechanical stepwise speed regulation, divided into six levels.
4. The grinding wheel holder adopts a three piece tile dynamic pressure bearing structure, with high rotation accuracy and low temperature.
5. The tailstock adopts a hydraulic telescopic sleeve structure.
6. The movement of the workbench and the movement of the grinding wheel holder can be either hydraulic or manual.
Product Parameters
| Items | M1320/500 | M1320/750 | Unit |
| Grinding diameter | Φ5-Φ200 | Φ5-Φ200 | mm |
| Max. grinding length | 500 | 750 | mm |
| Center height | 140 | 140 | mm |
| Distance between centers | 520 | 770 | mm |
| Max. loading | 50 | 50 | kg |
| Workbench rotation angle | -5.5~+7.5 | -5.5~+7.5 | ° |
| Grinding wheel size | Φ400*50 | Φ400*50 | mm |
| Spindle motor power | 3 | 3 | kw |
| Total power | 5.2 | 5.2 | kw |
| Grinding wheel speed | 1820 | 1820 | rpm |
| Net weight | 2500 | 2800 | kg |
| Gross weight | 2800 | 3200 | kg |
| Overall dimension | 1900×1400×1250 | 2370×1400×1250 | mm |
| Packaging dimension | 2080×1800×1860 | 2720×1800×1860 | mm |
| Accuracy | Roundness | 0.0015 | 0.0015 | mm |
| Cylindricity | 0.003 | 0.003 | mm |
| Roughness | Ra0.32 | Ra0.32 | um |

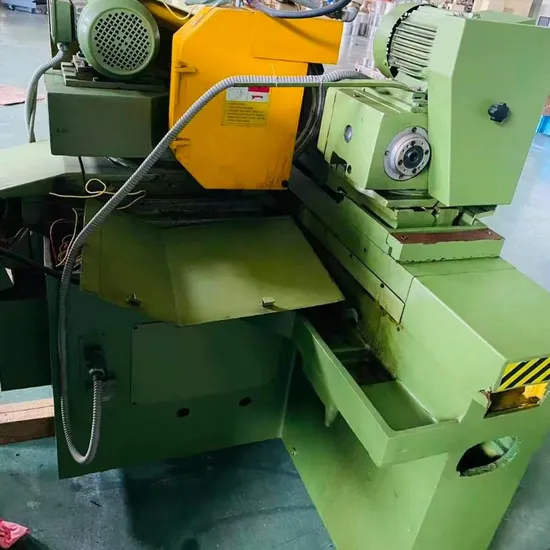

Detailed Photos
Work Piece
Packaging & Shipping
