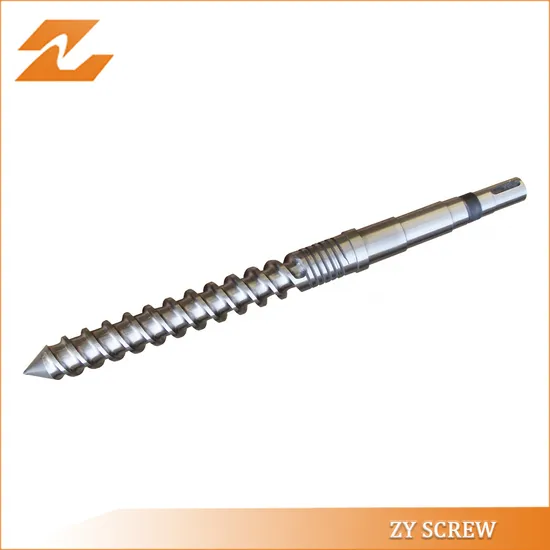

Customize Rubber Screw Barrel Rubber Screws

Product Description

Rubber Screw barrel, rubber extrusion screw barrel, plastic machinery screw barrel, pins cylinder for rubber machinery
Specification:
Diameter of pin screw and barrel: Φ 75mm-Φ 200mm
Diameter of cold feed or hot feed screw and barrel: Φ 30mm-Φ 300 mm
L/D ratio: 12-18
Technical Information
Base Materials:
1)38CrMoAlA(JIS SACM645)
2)42CrMo(AISI 4140)
3)4Cr5MoSi V1 (JIS SKD-61)
4)9Cr18MOV
5)HPT
Bimetallic alloy materials:
1)Fe-based alloy
2)Ni-based alloy/Deloro alloy
3)Co-based alloy
4)NiCo-based alloy
5)Tungsten carbide/Wolfram carbide
Technics:
Heat treatment
High-frequency quenching
Nitriding treatment
Hard-chrome electroplating
Bimetallic alloy welding
Bimetallic alloy centrifugal casting
Technical parameter:
Nitrided layer depth: 0.5-0.8mm
Nitrided hardness: 900-1000HV
Nitrided brittleness: Less than grade 1
Surface roughness: Ra0.4
Linearity of screw: 0.015mm
Hard-chrome plating hardness after nitriding: >=950HV
Chrome-plating layer depth: 0.025-0.085mm
Bimetallic layer depth: 3mm
Warranty and service: 1 year
Our advantages:
1)Excellent raw materials
2)Good customer service
3)Rapid delivery
4)Reasonable price
5)Production quickly
Experienced manufacture, we will be the best choice.

Type	Model	Hardness (HRC)	Wear resistant	Corrosion resistant	Thickness	Application Glass Fiber
PTA weld	ZB1 38CrMoAlA Ni-base alloy	45-58	Excellent	Special excellent	1.5~3mm	Under 10%
	ZB2 SKD61 Ni-base alloy	45-58	Special excellent	Excellent	1.5~3mm	Under 15%
Nitriding	Nitrided	HV more than 800	Good	Good	0.25mm	/

Types of Bimetallic Screw

For barrels, there are 4 kinds of bimetallic alloys against all types of wear:

Alloy Type		EJS01 Alloy	EJS02 Alloy	EJS03 Alloy	EJS04 Alloy
Wear resistance		Very good	Good	Very good	Excellent
Corrosion resistance		Good	Very good	Very good	Very good
Alloy components		Fe+Ni+Cr+B	Ni+Cr+Co+B	Ni+Cr+Co+V+B	Ni+Cr+Wc+Co+B
Hardness (HRC)		58~64	50~58	55~60	56~62
Temperature area (°C)		less than 400	less 450	less than 450	less than 600
Coefficient thermal	RT-250°C	11.0 x 10 -6	11.0 x 10 -6	11.5 x 10 -6	11 x 10 -6
Expansion (/°C)	RT-400°C	11.4 x 10 -6	11.4 x 10 -6	12.4 x 10 -6	12 x 10 -6

---
