Creator Fully Digital Tabletop Discussion & Voting Microphone Audio Conference System Gooseneck Microphone

Product Description

Product Overview

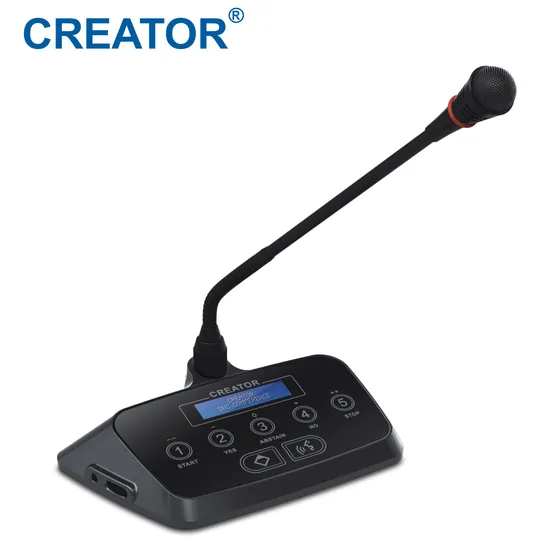

CR-DIG5202/04E2 is a tabletop discussion & voting unit for all-digital conference system. It integrates with discussion and discussion control, sign-in and sign-in control, voting and voting control.
Features
·Chairman unit has the priority function to close all speaking unit.
·Chairman unit has the function to initiate and end attendance sign.
·Chairman unit can initiate 3-key vote (for / abstentions / against), or end the voting.
·16charactersx2rows display provides the attendance results and voting results show.
·Support English show.
·Capacitive touch buttons, no buttons pressing sound, long operating life of the buttons, waterproof design.
·Support three vote modes:
A) voting: for, abstain from / against.
B) election / survey modes: 1/2/3/4/5.
C) response mode, evaluation methods: --,-,0,+,++.
·Capacitor heart type direction microphone, with double color indicator.
·It could only listen to the original voice channel, no channel selecting function, no loudspeaker.

Specifications

Model No.	CR-DIG5202/04E2
Power supply	The controller power supply
Frequency response	20Hz - 20KHz
Signal-to-noise ratio	>80dB
Channel crosstalk	>80dB
Total harmonic distortion	<0.05%
Maximum power dissipation	1.5W
Control display	16 charactersx2 rows (blue and white)
Unit interface	8 core aviation head
Color	Deep grey

Panel Drawing
System Diagram



Case Study
Gambia International Convention Center
Application Products: 1,500 sets of infrared simultaneous interpretation language distribution system, over 200 sets of full digital conference system, 19 sets of visual interaction system, 5 units of large-scale hybrid matrix switcher with video wall processing.
United Nations Conference on Trade and Development
Application products: 1200 sets of full digital conference system, matrix switcher, multimedia controller and other devices.
Brazil Federation of Industries of Sao Paolo (FIESP)
Application products: over 500 sets of CREATOR full digital discussion conference system, auto camera tracking system, and seamless swtiching matrix switcher.
