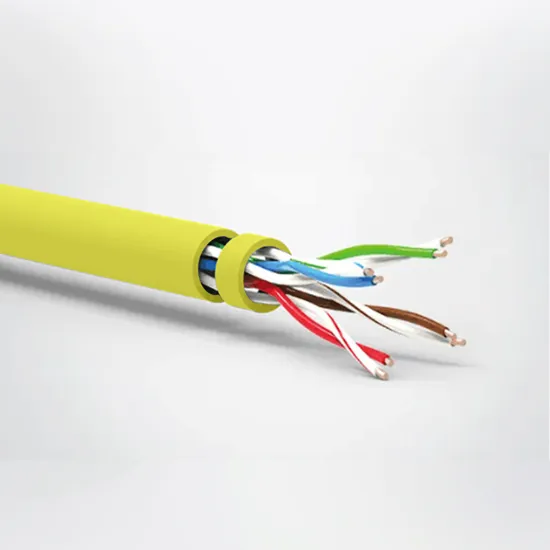

Copper Network LAN Data Cable UTP Cat5e

Product Description

Copper Network LAN Data Cable UTP Cat5e
Wire Core Material: Bare Copper WireModel: Cat5 LAN CableBrand: EANASON or OEMCertificate: ISO9001,CE,CCCJacket: PVCPacking: Carton, PalletJacket Color: According to the customer's requestInner Conductor: 24 AWG Bc/CCADielectric: 0.90mm PESheath: 5.20mm PVCNom. Thick: 0.55mmColor: Gray, White, BlackTransport Package: Wooden Reel, Plastic Reel, and Paper ReelSpecification: 300m/roll, or 305m/roll

DESCRIPTION
Manufactured according to ISO / IEC 11801, EIA / TIA-568-C.2, EN-50173.
TECHNICAL SPECIFICATIONS
Conductor		Bare copper	0.50±0.01 mm
Insulation		HDPE	0.90±0.05 mm
Identification of pairs
	1 pair	Blue - White / Blue
	2 pair	Orange - White / Orange
	3 pair	Green - White / Green
	4 pair	Brown - White / Brown
Ripcord		Yes
Sheath		PE
Color		Black
Bending radius		≥ 8 x Diameter (mm) Installation
Storage temperature		-20ºC-+70ºC
ELECTRICAL CHARACTERISTICS
	nº Pairs.xФ (mm)	Conductor Resistance (ohm/km)	Resistance Unbalance	Cap. between cond. pair (nF / 100m)		Velocity of Propagation (%)	Impendance (ohm)	ФExt. (Appvox) (mm)
	4x2x0.50	max.95	max.4%	5.6		69	100±15	5.1±0.3
	Frequency (MHz)	RL ≥dB	ATT ≤dB/100m	NEXT ≥dB	DELAY ≤ns/100m	PS NEXT ≥dB	EL FEXT ≥dB/100m	PS EL FEXT ≥dB/100m
	4	23.0	4.1	56.3	552.0	53.3	52.0	49.0
	8	24.5	5.8	51.8	547.0	48.8	45.9	42.9
	10	25.0	6.5	50.3	545.0	47.3	44.0	41.0
	16	25.0	8.2	47.2	543.0	44.2	39.9	36.9
	20	25.0	9.3	45.8	542.0	42.8	38.0	35.0
	25	24.3	10.4	44.3	541.0	41.3	36.0	33.0
	31.25	23.6	11.7	42.9	540.0	39.9	34.1	31.1
	62.5	21.5	17.0	38.4	539.0	35.4	28.1	25.1
	100	20.1	22.0	35.3	538.0	32.3	24.0	21.0
Appliance
Cable for data transmission in structured cabling networks (LAN), horizontal and secondary facilities.

---
