High Quality Heat Shrinkable Tubes Substitutes Optical Fiber Protective Sleeves Crimp Splice Protectors

Product Description

Data Sheet Splice Protectors / Crimps (SSE)
Assessment of the packaging Transport simulation / Degradation tests / Temperature change
25°C up to +75°C; 20 zykles over 8 days
Product Description TECHNICAL DATA / DESCRIPTION

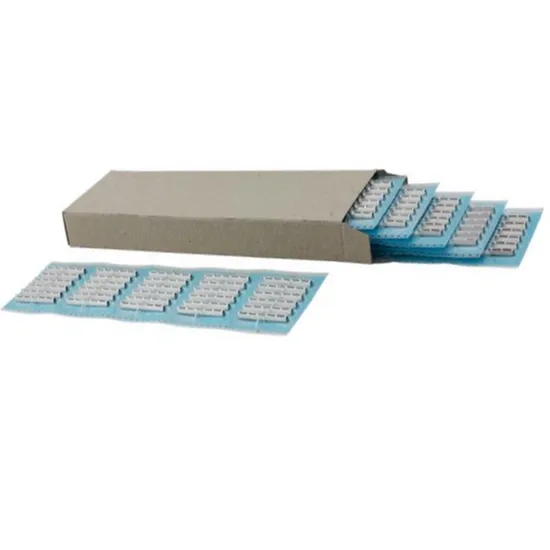

Stable construction for mechanical protection of fusion splice Use in glass fibers with 250μm outside diameter (including primary coating) Permanently elastic compound prevents damage to the splice site from environmental influences No influence on the absorption of the splice resealable blister packaging Packing unit consisting of 5 strips a 30 splice protection elements incl. assembly instructions Processing with any commercially available press for crimp splice protection SSE with Telekom approval according to TS 0338/96 *
Assessment of the packaging
Transport simulation / Degradation tests / Temperature change
25°C up to +75°C; 20 zykles over 8 days
Assessment on splice connections
A spliced fiber optic line, which is protected at the splice with the splice protection element, is successively exposed to the following tests without resulting in a change in attenuation of the fiber optic path of greater than 0.1 dB. The measurements are carried out at a wavelength of 1550 nm. Dry heat according to DIN EN 61300-2-18; 4 days at + 85 ° C cold according to DIN EN 61300-2-17; 4 days at -40 ° C Humidity heat according to DIN EN 61300-2-19; 4 days at 40 ° C and a relative humidity of 93% Temperature change according to DIN EN 61300-2-22; 12 cycles over 3 days from -40 ° C to + 70°C Vibration test according to EN 60068-2-27; 3 hours at frequencies of 10-500 Hz Shock test according to EN 60068-2-27 with 15 g
Mechanical tests Bending test: Upright in longitudinal axis and flat in longitudinal axis. Testing of protective compound: Pressing force and flow rate
Detailed Photos Company Profile
F A Q 1. Are you real manufacturer?
Yes, our factory is located in Shenzhen, China, 10 Years experience.
2. Can you provide the samples?
Yes, Samples free of charge, but freight necessary to bear yourself,
3. What is the delivery time?
It takes 3-5 days for the samples, 7-15 days for the bulk production. It depends on the order quantity.
4. Can you supply customized products and logo? (OEM/ODM)
Yes, we can provide the OEM/ODM, please feel free to let us know your requirements.
5.Do you have warranty for your products?
Yes, 1-3 Years.

---
