Product Description
Product Description

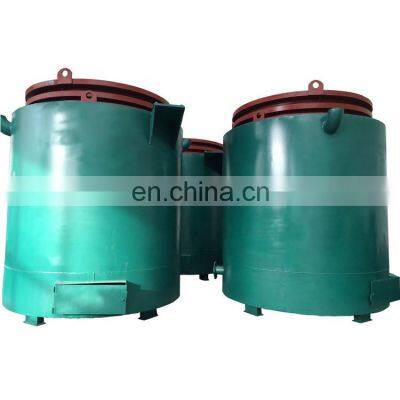

Coconut shell charcoal carbonization oven
Product Description
Introduction of Coconut shell charcoal carbonization oven
This machine can carbonize different biomass materials into bbq charcoals. For example: Wood, bamboo,sawdust, rice husk, straw and stalk, coconut shell, peanut shell, olive wastes, sugarcane,ect. You can put lump materials into furnace directly, and get natural biomass charcoal after 6-10hours.
Structure of Coconut shell charcoal carbonization oven:
This machine is easy to operate and it has big capacity.
♦ Ourter stove
♦ Inner stove
♦ Cover
♦ Hoist
♦ Purify system
Advantages of Coconut shell charcoal carbonization oven:
♦ No need electricity
♦ Big capacity: 1000kg-9000kg charcoal per day
♦ Energy saving
♦ It has air cleaning system
♦ It includes hoist which can load and unload Inner pot easily.
Data of Coconut shell charcoal carbonization oven:
Single Coconut shell charcoal carbonization oven:
2 sets Coconut shell charcoal carbonization oven combined together:
3 or 5 sets Coconut shell charcoal carbonization oven combined together:
How to produce charcoal bu using our Coconut shell charcoal carbonization oven?
It devides three processes:
1. Heat
After sealing work, use woode wastes or gas to heat furnace. Primarily, 10 minutes big fire to burn, when temperature reach 90 degrees centigrade turn to use slow fire to heat. It takes 80-120minutes for this process to reduce water vapor from your materials.
2. Pyrolyse
Keep heating, when the temperature reach 180-235 degrees centigrade for 3-5hours, it will produce gas from this process. Reuse this gas as fuel to heat. The whole process is about 8hours. When the temperature reach highest and it reduces, the dry distillation process will finished.
3. Cooling
Hang the Inner pot outside, and seal the pipes of cover. Let it cool naturally. Cooling time is longer, the quality of charcoal is good. When the temperature lower than 50 degree, you can take charcoal out. Otherwise, the charcoal will burn again when met oxygen of air.
Final charcoal:
Final wood charcoal:
Final machine-made charcoal briquette
Packaging & Shipping
Delivery of Coconut shell charcoal carbonization oven
Our Services
1. 24 hours online service
2. We can design the machine and provide drawing paper depends on your facts
3. Engineer available to install machinery overseas
4. We will pick you up at airport or railway station when you come to visit our factory
Company uphold: honesty, quality first, customer first for the purpose.
FAQ
Questions:
1. What is capacity of your machine?
--- One inner pot can load 2.5tons machine-made briquettes, 8hours will get one ton machine-made charcoal.
one Inner pot can load 2tons natural wood, 8-10hours will get 600kg-800kg natural charcoal.
Therefore, one furnace can get: 3tons machine-made charcoal, 1.8-2.5tons natural wood charcoal.
2. What is carbonization time?
--- Normally, 8-10hours. If your natural wood is fresh, it takes long time to remove moisture of wood, therefore, carbonization time is longer.
3. When the charcoal is finished?
--- There is no smoke and smoke is blue lucid,the process is finished.
4. How many times should we cool the charcoal?
It takes 6-10 hours. When the inner pot goes down to 50℃ or less, charcoal can be packaging and collecting.
If you are interest in our machine contact me at any time.
