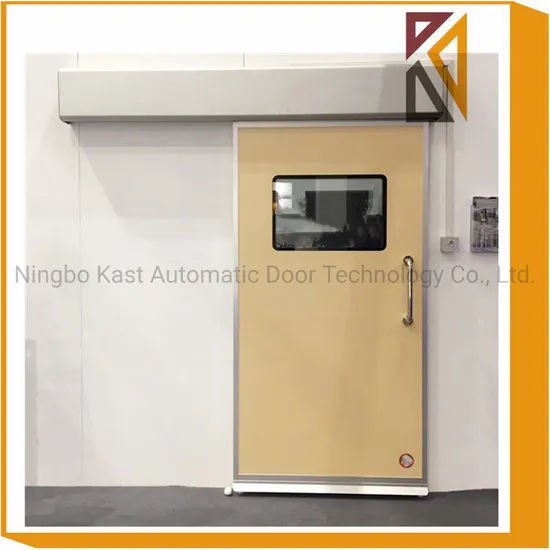

Hospital Hermetic Automatic Sliding Door with HPL Laminate

Product Description

Hermetic hosptial automatic door has been specially designed for operating theatres, isolation words, mortuaries, X-ray and recovery rooms in hospital and clean room. Manual or electric automation micro processor controlled with photocell, hand sensor or foot sensor switch to operate door.
Door Introduction,
1. Door blade,
*48mm aluminum honeycomb core faced both sides with HPL laminate with anti-bacterial treatment(wear proof,moisture proof,impact resistance,antiflaming,antimicrobico,stain resistant charateristic and u can choose the panel color as u like
*Framed in anodized aluminum profiles with rounded edges in aluminum or brushed stainless steel.


2. Door frames&Silicone rubber gasket
*Frame and counter frame in aluminum profile with rounded edges or welded 304L stainless steel suit the hospital door
*Silicone seal gasket are assembled round in the door frame and around the hospial door panel to promise airtightness in the operation room.
3.Observatio Window
Apply double laminated 5mm+5mm safety glass window with round edges and gradient color or lead glass,totally flush on both sides with the door panel
4.Door Handle
Reinforced polyamide or 304L stainless steel bar handle or painted steel or stainless steel flush pull handle
5.Automatic Door Operator
*"U" design anodized aluminum track with ramps
*Exclusive 24V brushless motor and controller to ensure the stable and smooth working.
Technical Datas,

Door model	Single open
Steel panel thickness	2mm
Door panel thickness	50-55mm
Radiation equivalent	Max 3mmpb
Standard size	2100mm*1400mm
Max capacity	250KG
Open speed(adjustable)	150mm-600mm/s
close speed(adjustable)	100-500mm/s
Activation	foot sensor /hand sensor
Infill	aluminum honeycomb&anti-radiation lead
Power supply	230VAC+10/-15%,50/60Hz
Working temperature	-20ºC to 50ºC
Airtightness standard	GBZ/T147-2002
