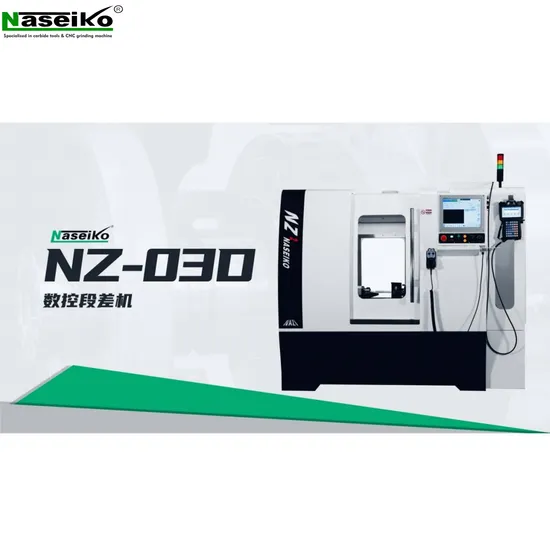

CNC Preform Mismatch Grinding Machine Nz-30 for Blank Preparation

Product Description

CNC Preform Grinding Machine NZ-30 for Blank Preparation
-- X axis, horizontal straight CNC axis, Australia Anca servo motor, THK precision ball leadscrew, THK precision roller guide rail. -- Z axis, horizontal straight CNC axis, Australia Anca servo motor, THK precision ball leadscrew, THK precision roller guide rail. -- C axis, left/right rotation15 degree. -- High precision imported universal probe (probe: workpiece detection). -- Overall marble bed body. -- Seal machine cover, imported acrylic double door, convenient operation and maintenance. -- Mobile hand pulse with magnet for easy operation. -- Special permanent magnet electric spindle, the grinding wheel flange can be dismantled to the grinding wheel dressing machine to repair the grinding wheel. -- Install pipe sealed oil-proof LED lamp in the machine.
Product Parameters

	Unit	NZ-30D
X axis	-	linear axis,servo moto
Z axis	-	Imported servo motor drive
Manual C axis	-	Left/right rotate 15°
Quick travel (X/Z axis)	-	0.0001
Minimum diameter for clamping workpiece	mm	Φ3
Maximum diameter for clamping workpiece	mm	Φ16
Maximum length for clamping workpiece	mm	Φ150
Minimum diameter for grinding workpiece	mm	Φ1
Maximum diameter for grinding workpiece	mm	Φ20
Maximum workpiece weight	kg	5
Linear resolution	mm	0.005
Linear repeating positioning accuracy	-	0.004
Grinding wheel spindle power	-	15kw (rated: 3000-8000 rounds
Grinding wheel diameter		75mm(min)~150mm(max)
Machine weight	kg	3000
Total power	kw	≤17.5kw

Detailed Photos
FAQ
Q: What is your product line?
A: CNC grinding machine,
CNC mismatch grinder machine,
Electronics servo press machine,
Precision Grinding Wheel Dressing Machine.
Carbide end mill, carbide burr, dental burrs, and other tungsten carbide items,etc.
Q: Is ODM or OEM production supported?
A: Yes.
Q: What is MOQ for your product?
A: For standard models machine, MOQ is 1 set ;
For OEM ODM customized machine, MOQ is from 10 sets.
For carbide tools, MOQ is from 1000 units.
Q: How long is the delivery time?
A: For standard Naseiko machine, it is about 1-2 months after order confirmed;
For customized machine, it will be 6~12 months after order confirmed;
For customized milling cutter or carbide burrs, it is about 1 month.
Q: Where is your loading port?
A: Shanghai / Guangzhou ,China port.
Q: How do you implement equipment warranty overseas?
A: At present, we have contracted after-sales service points overseas, and in the future, we will establish our own after-sales service centers in key overseas markets.
Q: What are your benefits superior to other suppliers?
A: Naseiko Intelligent technology is a manufacturing enterprise with years of industry experience, focusing on the research and production of CNC tool grinders. Our team has rich experience and professional knowledge in this field.
We have international advanced testing equipment, excellent craftsmanship and refine quality management system,
as well as professional team. It ensures our products stable and reliable.

Company Profile
Naseiko Intelligent Technology (Shenzhen) Co., Ltd, a global leader in providing comprehensive solutions in the tungsten carbide industry, focusing on manufacturing high-quality tungsten carbide products and related sophisticated automatic machines, are committed to delivering integrated solutions to meet the needs of our worldwide customers in this industry.Our extensive product line covers a wide range of applications in the tungsten carbide industry. We offer top quality products such as high precision CNC insert, milling cutter, carbide burrs, industry knife, wear-resistant components, carbide tools. These products are manufactured using advanced techniques and premium hard alloy materials, ensuring exceptional hardness, toughness, and wear resistance.Except supplying superior quality carbide products, Naseiko Shenzhen also provide a wide range of equipments and solutions specifically designed for tungsten carbide production. Our state-of-the-art equipment includes high-precision electric servo pressing machines, Four-axis Four-linkage CNC grinding machines, Five-axis Five-linkage CNC grinding machines, Six-axis Six-linkage CNC grinding machines, Grinding wheel dressing machine, CNC mismatch machine, tool profiler, SX series manual quadratic image meter, Automatic jet type polishing passivation machine, and all kinds of high precision carbide mold. Our advanced machines help our customers to enhance production efficiency, ensure high machining precision and maintain consistent product quality.As a provider of integrated solutions, the Naseiko team works closely with clients to understand their unique requirements and provide customized solutions. We aim to support our customers′ success by delivering reliable products, equipments and comprehensive technical assistance.Continuous improvement in product quality and technological innovation is the core of our business philosophy. We strive to stay ahead of market trends and constantly adapt to meet your needs. Partner with every customer in long terms with mutual benefit, we contribute to your business growth and success.Looking for a reliable supplier of tungsten carbide products or advanced automatic equipment or even an integrated solutions in the hardmetal industry, Please don′t hesitate to contact Naseiko. We are dedicated to providing you with premium products, exceptional support and one-package solutions for your specific requirements.Thanks for interest in Naseiko shenzhen. We′re looking forward to partner with you for mutual success in the near future!

---
