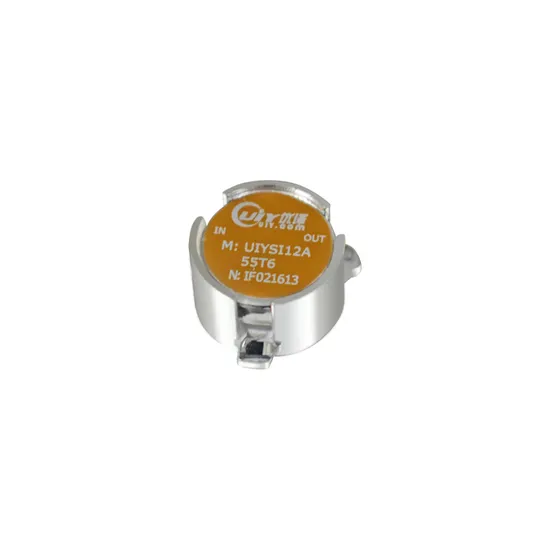

UIY 5~6GHz 30W RF SMT Surface Mount Isolator for 5G Telecommunications

Product Description

Product Description RF Isolator is a two port device that protects RF components in a system from excessive signal reflection.
It is a non-reciprocal device that ensures that all the power is transmitted from port 1 to port 2, while isolating absorbing/isolating any power incident at port 2. An isolator is often placed at the in front of sensitive component sin the Rx/Tx chain to avoid unwanted signals from damaging sensitive components. Detailed Photos

Description	UIY 5~6GHz 30W RF SMT Surface Mount Isolator for 5G Telecommunications
Model Number	UIYSI12A5000T6000
Freq. Range	5000 ~ 6000MHz
Insertion Loss Max	0.4dB
Isolation Min	19dB
VSWR Max	1.25
Forward Power	30W
Reverse Power	10W
Connector Type	SMT
Dimension LxWxH	Φ12.7×8mm
Temp.(°C)	-40 ~ +85°C
Warranty	one year
Certificate	RoHS, REACH, ISO9001, ISO14001

Certifications
Packaging & Shipping
Company Profile
Our Advantages Since 2003, UIY Inc. has become a critical supplier and partner to major companies serving the Aerospace, Radar, Defense, Medical, Communications and Specialty Test industries.UIY's product offerings include:
RF Isolator, RF Circulator
Coaxial Termination, Coaxial Attenuator
RF Filter, Duplexer, Triplexer
Power Divider/Splitter, RF Combiner/Hybrid Coupler
Directional Coupler
TX RX Combiner/Splitter/Multi coupler
Waveguide to Coaxial Adapter, etc.We offer cost-effective customized solutions in a wide range of RF and Microwave Components and Subsystems.Advantages:we offer - ROHS Compliantwe offer - HFSS Simulationwe guarantee - One Year warrantywe guarantee - Fast Delivery we support - OEM & Contract Manufacturing
FAQ Q. Are you a factory or trading company?A: We are a factory and we have over 20 years of experience focusing on manufacturing .We can give you competitive price and professional service.Q. Do you have any certificates?A: Yes, we have ISO, REACH and RoHS certificates.Q. Would you make custom products?A: Yes, we offer customized service per your requirements.Q. What about lead time for sample and production?A: It's about 2 weeks for new design sample and 1~4 weeks for production. It depends on the order quantity.
Q. What is the Terms of Payment?A: T/T, Paypal, Alipay
Q. How long is the warranty ?
A: One year

---
