Product Details
Product Description
Product Description

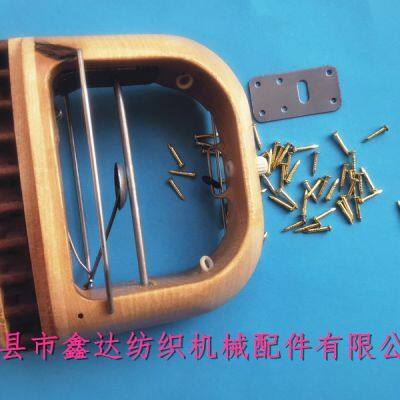

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Side Wall Baffle & Nail For Ribbon Loom Shuttle,Ribbon Shuttle Side Wall Baffle & Nail, side wall baffles and nails for Guangye webbing machine arc-shaped shuttle accessories. The side wall baffles are mainly used for 10 tooth arc-shaped horseshoe shuttles to fix the torsion spring on the spool spindle. Its external dimensions are: length 32mm, width 16mm, thickness 0.4mm, inner length of the middle long hole 8mm, inner width 3.5mm, and length from the edge 11.3mm and 17mm.
The diameter of the six circular holes on the side wall baffle is 1.4mm, and the center to center spacing of the four holes on the right side is 8mm (as shown in the above picture, which is the front). The edges of the circular holes on both sides are 2.5mm away from the outer edge.
The above picture shows the back of the side wall baffle. Side Wall Baffle & Nail For Ribbon Loom Shuttle, The total length of the nails is 9.3mm, and the diameter of the main body is 1mm; The installation diagram of the side wall baffle on the shuttle is as follows:
If you need to purchase textile sidewall baffles, Ribbon Wooden Shuttle Spare Parts,Guangye ribbon shuttles, ribbon loom parts, shuttle accessories, nails and other products, please contact Mr. Yang from our company for more information.
>>
