US$14,614.00-19,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Light Level
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Transport Package
Plywood Case
Product Description

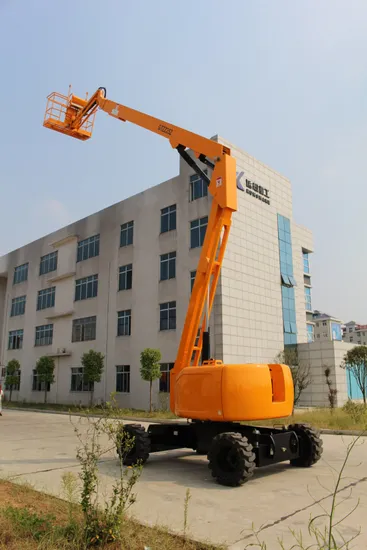

RACERMAX Cherry picker aerial work platform mobile boom lift platform with diesel engine
GENERAL Technical Parameter of towable boom lifts
Technical Parameter of towable boom lifts | Model | Rising | Horizontal Span | Loading | Table | External | Net |
| Height | of Table | Capacity | Size | Dimensions(mm) | Weight |
| SDZ-8 | 8m | 4.5m | 200kg | 1200*800mm | 5460*1650*1900 | 1700kg |
| SDZ-10 | 10m | 5m | 200kg | 1200*800mm | 5200*1600*1900 | 1500kg |
| SDZ-12 | 12m | 6m | 200kg | 1200*800mm | 6400*1665*1900 | 2000kg |
| SDZ-14 | 14m | 8.5m | 200kg | 1200*800mm | 6500*1730*2100 | 2350kg |
| SDZ-16 | 16m | 9m | 200kg | 1200*800mm | 7000*730*2200 | 2600kg |
| | | | | | |
1.Anti-collision safety guardrail: it is used to protect user's hands in case of a collision with obstacles,Metallic paint on appearance is featured by anti-ultraviolet radiation, corrosion resistance and brightness.
2.Outriggers: High strength all steel base, with independently operated hydraulic Outriggers, independent control by the handle, space can be adjusted as use condition.
3.Regulating wheel: To adjust the height of the whole machine for better movement behind of trailer, and keep level working
4.Inertial sensor: This device will brake towable boom lift automatically when the trailer/van stop suddenly
5.Boom lift has two controllers, one controller at the top platform, the other one at the chassis of boom lift. So we could control boom lift easily
6.The boom lock prevent boom sway during boom moving, in case of boom lift damage
7.When the boom lift is running, the warning light will sound to remind the surrounding people to pay attention to safety
Advantages of Trailer Folding Arm lift Boom lift
1.Three sources of power: General Diesel engine.Also can supply AC Electric power and Storage battery ,battery works without noise.
2.Four full-automatic hydraulic legs,provide great stability for the equipment.
3.Boom rotation 360°,so it can work across the barriers.
Details SHow
Application
It can be towed everywhere by car, and the four automatic hydraulic legs provide high stability.
Widely used in roads, street light maintenance, shopping malls, and other working place.
RACERMAX
Racermax Machinery Co.,Ltd. is mainly manufacturing hydraulic lift, aerial working platform, etc, providing specialized lifting equipment and scheme for both enterprise and privacy .
The main products are : Scissor Lift, Aluminum-alloy mast lift, Four-post Car Lift, Wheelchair Lift, Vertical cargo Lift, Articulated boom lift, Hydraulic dock leveler and other special customized products. Company product design and manufacturing experience in fifteen years, a series of special technology, developing the key technology, through ISO9001 and European quality CE certification
