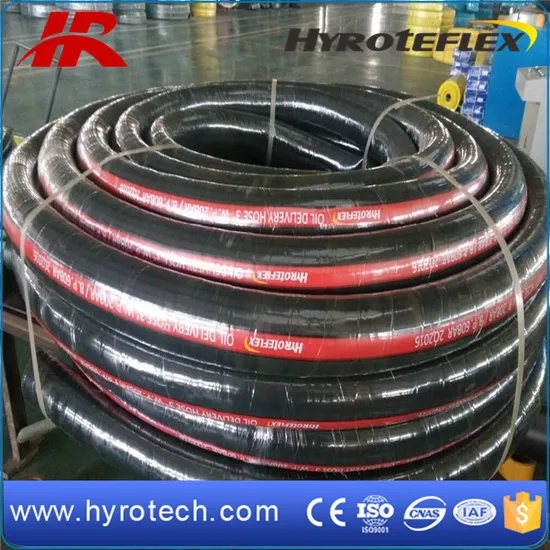

Suction and Discharge Oil Hose Gasoline Fuel Hydraulic Oil

Product Description

Tube: NBR rubber, black, smooth
Reinforcement; High strength synthetic cord, anti-static copper wire available, and steel helix wire
Cover: Synthetic rubber, black, wrapped finish, weather and oil-resistant
Temperature: -20ºC to +80ºC
Application: Mandrel hard wall hose used for the suction and delivery of petroleum products with aromatic content up to 30%
Specification of oil suction hose is as follows:
Working Pressure also can be 20BAR, burst pressure 60BAR

Inside		Outside	Working		Burst		Nominal	Bending	Length
Diameter		Diameter	Pressure		Pressure		Weight	Radius
inch	mm	mm	bar	psi	bar	psi	kg/m	mm	m
3/4	19	30	10	150	30	450	0.67	160	60/40
1	25	36	10	150	30	450	0.84	180	60/40
1-1/4	32	44	10	150	30	450	0.95	200	60/40
1-1/2	38	51	10	150	30	450	1.2	250	60/40
2	51	64	10	150	30	450	1.55	300	60/40
2-1/2	64	78	10	150	30	450	2.17	400	60/40
3	76	90	10	150	30	450	2.54	400	60/40
3-1/2	89	103	10	150	30	450	2.95	500	60/40
4	102	117	10	150	30	450	3.44	500	60/40
5	127	142	10	150	30	450	4.56	600	20
6	152	167	10	150	30	450	5.41	600	20
8	203	225	10	150	30	450	12.45	1000	10
10	254	280	10	150	30	450	19.53	1300	10
12	304	332	10	150	30	450	26.47	1600	10
