Veinasa-Yw01 Dam River Hydrology Engineering Radar Water Level Measurement Sensor Water Level Sensor

Product Description

Veinasa-YW01 Dam RIver Hydrology Engineering Radar Water Level Measurement Sensor Water Level Sensor Product Description
Veinasa-YW01 Dam RIver Hydrology Engineering Radar Water Level Measurement Sensor Water Level Sensor is based on electromagnetic wave ranging technology of precise time measurement. The sensor emits electromagnetic wave to irradiate the water surface and receives its echo. From this, the information of distance, distance change rate (radial velocity), azimuth and height from the water surface to the electromagnetic wave transmitting point can be obtained. Intelligent radar water level gauge is an innovative application of industrial ranging radar in the field of water level measurement. It realizes the technological leap of water level gauge to high precision (millimeter level), large range (35
meters), high reliability, easy installation and maintenance-free. Intelligent radar water level gauge is connected with computer and PLC through standard signal interface. It can also be connected with corresponding display, recording and control devices (such as RTU) to form a water level monitoring system. Product Parameters

Product name	Water Level Sensor
Name	Parameters
Measuring range	30 meters (maximum 70 meters, high range to be customized)
Accuracy	+/- 10MM
Work environment	-40--+80ºC
Working voltage	Four-wire DC 6-28V and two-wire DC 18-30V
Wiring	Four-wire shielded cable, waterproof terminal M20X1.5, suitable for cable outer diameter 9-13MM
Power consumption	Maximum power consumption is 0.7W (maximum power consumption is 0.5W if 4-20mA transmission is used)
Output	MODBUS RTU
Shell	Cast aluminum, IP67
Color	Yellow/dark green/white optional, default bright yellow
Horn antenna	Stainless steel 304, 120MM caliber (high range model caliber 100MM)
Installation accessories	Stainless steel hexagonal nut G1-1/2

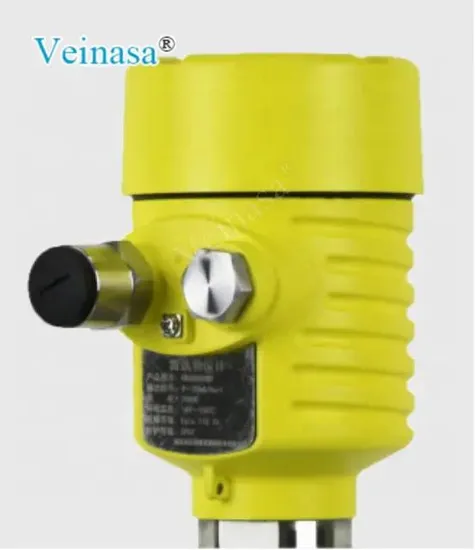

Product Display
Veinasa-YW01 Dam RIver Hydrology Engineering Radar Water Level Measurement Sensor Water Level Sensor functional characteristics:
Ø All-weather, high-frequency microwave ranging technology, strong anti-interference ability
Ø Sensor reliability accuracy reaches 1.5 mm
Ø Unattended
Ø No mechanical wear and non-contact measurement
Ø Measurement is independent of water quality and is not affected by floating matter such as ice floes.
Ø There is no need for a wave-proof well, and the flow has no effect on the measurement.
Ø Continuous on-line acquisition
Ø Optional solar power supply
Ø Low cost, simple installation and maintenance, long life
Conductor Type: It is recommended to use the national standard 0.5mm2 four-core shielded hydraulic cable
1.Power supply and signal output 2.±24VDC POWER SUPPLY
1.V+, V-Wide Power Supply Terminals (Solar12VDC Applicable) 2.A,B RS485 OUTPUT 3.ADDR Addressing button 4. REST Location reset key Application Case Veinasa-YW01 Dam RIver Hydrology Engineering Radar Water Level Measurement Sensor Water Level Sensor is suitable for monitoring river water level, open channel water level, tail water level under dam, mountain torrent, flood control, Surge Tower (well) water level, especially for automatic tide level monitoring system, urban water supply and sewage level monitoring system.
Company Profile
FAQ Q: What's the main characteristics of this water level sensor?A: Congratulations, simple installation and maintenance, factory price but amazing quality.Q: What's the common power supply and signal output?A: Common power supply and signal output is DC12V, RS485. But we can customize for you as demands.Q: How can I collect data?A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol.If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.Q: What's the lifetime of this water level gauge?A: At least 5 years long. Every sensor has its own calibration certificate or testing report.Q:What's the delivery time?A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.Q: May I know your warranty?A: Yes, usually it's 1 year. We can send you detailed warranty document if needed.With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!
