Basic Info.
Computerized
Computerized
Certification
ISO9001:2008, CE
Central Height of Machine (mm)
1000
Voltage
380V, 50Hz(or Customize)
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Pelletizing Type
Hot-Cutting
Processing Type
Extruding Machine
Extruder Type
Extruder Type
Temperature Control
Ormon
Raw Material
Waste PVC Material
Transport Package
Standard Shipping Packaging
Specification
23000mm*3000mm*3000mm
Origin
Zhangjiagang Jiangsu China
Production Capacity
20set/Month
Product Description
Product Description

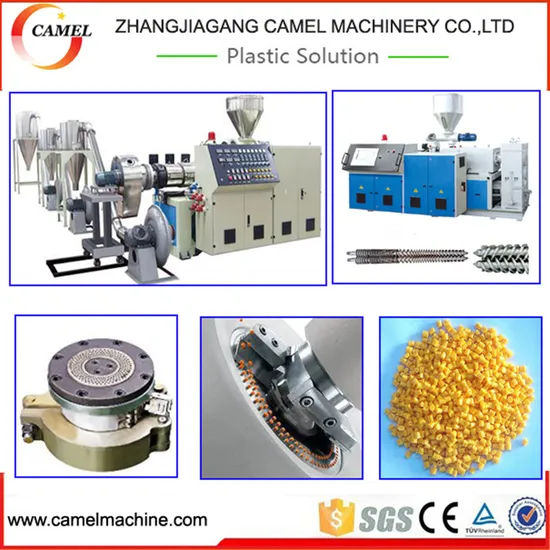

PVC Pelletizing Production Line
Pelletizing Machine
Quality Cheapest PVC Pelletizing Production Line
1.Application of SJSZ80 pvc pelletizing production line
With different designs of screw, this machine can be applied to granulate the recycled material of rigid PVC
soft PVC and waste PVC. It can be stopless in the course of production. It used pneumatic conversion and strong-wind blowing. At the same time can adjust stainless steel storage container and can run at high speed for a long time while extrude stably.
2.Features of SJSZ80 pvc pelletizing production line
1,advanced equipment, precise pelletizing and high producing capacity.
2, Conical double-screw extruder, very suitable to process PVC powder with high capacity
3, Pelletizing style: Hot-cutting on mould face, even cutting ensures good shape.
4,Auxiliary machine: Pellets cooling & classifying
3.Technique parameterof SJSZ80 pvc pelletizing production line
| Model number | Screw diameter (mm) | Rotational speed of screw (rpm) | Pellets size(mm) | Main motor power (kw) | Heating power of Barrel (kw) | Production capacity (kg/h) | Central height of machine (mm) | Net weight | Overall size (mm) |
| SJSZ45 | 45/90 | 1-45 | 3-4mm | 15 | 9.6 | 70-80 | 1000 | 2800 | 3300*1200*2000 |
| SJSZ51 | 51/105 | 1-45.5 | 3-4mm | 22 | 11.5 | 80-120 | 1000 | 3000 | 3360*1290*2100 |
| SJSZ55 | 55/110 | 1-40 | 3-4mm | 22 | 18 | 150-180 | 1000 | 3500 | 3620*1350*2200 |
| SJSZ65 | 65/132 | 1-38 | 3-4mm | 37 | 24 | 250-300 | 1000 | 4000 | 4235*1520*2450 |
| SJSZ80 | 80/156 | 1-36.9 | 3-4mm | 55 | 36 | 320-450 | 1000 | 5000 | 4750*1550*2460 |
| SJSZ92 | 92/188 | 1-34.7 | 3-4mm | 110 | 88 | 650-800 | 1000 | 5500 | 6000*1600*2500 |
