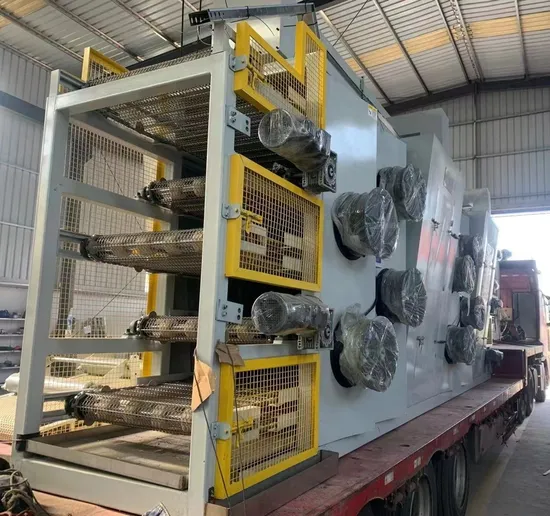

Xpg-900 Rubber Sheet Cooling Machine / Rubber Sheet Batch off Cooler

Product Description

XPG-900 Rubber Sheet Cooling Machine / Rubber Sheet Batch Off Cooler Product Description
Batch off cooling machine is mainly for cooling, folding and depositing rubber strip comes from two roll mixing mill,rubber calender machine or rubber extruder. Batch off cooling machine work procedure:
1. Traction device:Take hot rubber strip/sheet in, coating with separant in water tank.
2. Hang rubber strip/sheet, cooling and drying by fans.
3. Stack rubber strip/sheet on pallet. 4. Cut rubber strip/sheet into long sheet or pieces with specific size. Rubber batch off cooling machine is floor stand type with simple & rational structure, easy to operate. It is mainly consists of inlet module, cooling device, lifting device, festoon module, down swing device, operating platform, and ladder etc. The electrical control system is in a control box, and set emergency control device on the machine. Product Parameters Technical Specification:

Model	unit	XPG-600	XPG-800	XPG-900
Rubber sheet thickness	mm	4~10	4~12	6-12
Rubber sheet temperature after cooling over room temperature	ºC	5	5	5
Max. Rubber sheet width	mm	600	800	900
Linear speed of taking-in device	mm/min	3-35	3-35	4-40
Linear speed of hang rod	mm/min	1-3	1-3	1-3
Total power	KW	16-32	20-63	25-70
Hanging height of rubber sheet	mm	1400 adjustable	1400 adjustable	1400 adjustable
Number of cooling fans	kw	12-24	22-52	24-60
Weight	t	Around 10	Around 20	Around 30

Packaging & Shipping Company Profile Qingdao Libang Industry Products Co.,Ltd is a professional provider of rubber machine.
Our products mainly include kneader, banbury mixer, mixing mill, refiner, calender, extruder, batch off cooler, plate curing press, microwave curing machine, cracker mill, skiving machine, extruder, tire reclaimed rubber machines, butyl reclaimed rubber machines, EPDM reclaimed rubber machines, rubber powder machines, and so on. We enjoy good reputation with reasonable price, best quality and good delivery. And we sincerely welcome clients from home and abroad to establish long and steady business relations and develop domestic and international market jointly on the base of equality and mutual benefit.
More Products
Rubber mixing equipment: Bale cutter, Kneader, Bucket elevator, Mixing mill Rubber vulcanizing machine: Four-column press, Frame press, Tire & tube press,etc Automatic & Semi-automatic waste tire recycling machine Rubber calender machine: 3 roll & 4 roll calender Rubber extruding machine: cold feed extruder & hot feed extruder Reclaimed rubber production line: Dynamic devulcanizer, Cracker mill, Rubber refiner,et Customers Feeback

---
