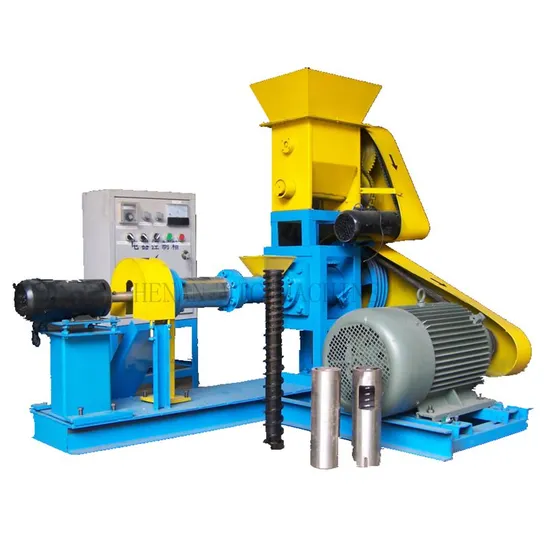

Dry Way Animal Feed Extruding Equipment

Product Description

Dry Way Animal Feed Extruding Equipment
Application:
The raw materials can be wheat, soybean, cake and other leftovers etc. The final products floating pellets are widely used in frogs, aquatic, ornamental fish, pet feed, fish farmers, small feed mill.
Features:
(1)The cutting structure is very advanced with cutter shaft fixed spring to cut to realize. Infinitely speed change; the final output product can be cut freely in different length according to requirement.
(2)The Screw is made of special wear-resisting No38 chromium aluminum molybdenum after tempering, heating and formed; it's with wear-resisting and long life.
(3)In order to ensure quality and capacity, there is special pressurization die device and the electric heating devices improve the feed expansion rate.
(4)The main bearing is from Japanese and Sweden SKF bearing to ensure its safety. The main motor is Y-Series three phrase motor.
(5)The floating pellets will float on the water for about 12hours without spreading. The pellets are no pollution and easy for working members to observe. The materials is health and easy for fish and poultry to absorb. Usually if use floating pellet feed can save 8-15% feed than to use powder feed.
Main data:

Model	Capacity(t/h)	Main power(KW)	Feeder power(KW)	Screw diameter(mm)	Cutting power(KW)	Packing weight(kg)
DGP40-C	0.03-0.04	5.5	0.4	Φ40	0.4	280
DGP50-C	0.06-0.08	7.5-11	0.4	Φ50	0.4	360
DGP60-C	0.12-0.15	15	0.4	φ60	0.4	386
DGP70-B	0.18-0.2	18.5	0.4	φ70	0.4	640
DGP80-B	0.2-0.25	22	0.4	φ80	0.6	750
DGP90-B	0.32-0.35	37	0.6	φ90	0.8	1050
DGP120-B	0.5-0.6	55	1.1	φ120	2.2	1880
DGP135-B	0.7-0.8	75	1.1	φ133	2.2	2100
DGP160-B	1-1.2	90	1.5	φ155	2.2	2500
DGP200-B	1.8-2.0	132	1.5	φ195	3.0	3000

More photos
Parts
Package:
Final product:
Our factory
Our certificate:
After-sales service

---
