Towable Articulating Boom Lift with CE

Product Description

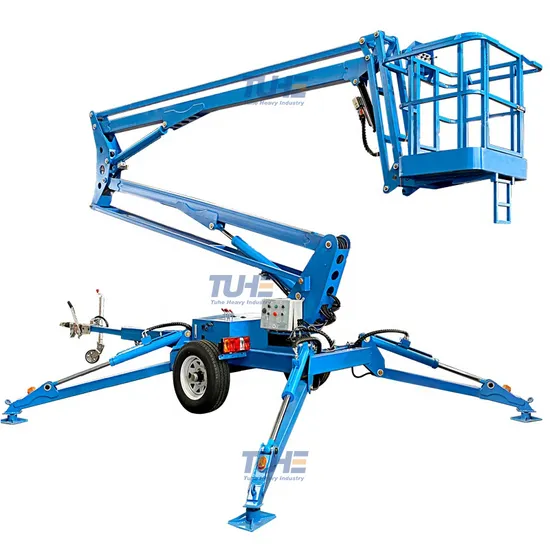

Product Description Articulating Boom Lift is also called "spider boom lift". The main structure of the cantilever lift has four outriggers, the arm, a work basket platform for carrying staff, and the bottom control system. It has durable tires and trailer hooks, which can be moved in different working locations by the trailer, and the outriggers can allow it to work on uneven ground.
As a manufacturer located in China, For Articulating Boom Lift, customers can get the best price from TUHE. In addition, we also have our freight forwarder to arrange transportation for you. We will make shopping as easy as possible.
The Articulating Boom Lift is space-efficient, both when in use and folded for storage, as it's able to move around in narrow spaces easily and be folded up for compact. Articulated boom lift can be mounted on a trailer or truck to move freely from one place to another. It can rotate 360°. The four automatic hydraulic legs provide high stability.
Articulating Boom Lift advantages:
The whole machine adopts folding mechanism and special design, so that the articulating boom lift can become a very small equipment when it is not working. It can be stored in garage and warehouse. The design of front universal wheel makes the lift easy to move. Of course, as a factory, we can also add auxiliary walking power device and remote control for you to quickly move lift to the designated area in the working area.
Ø Rotate 360 Degrees: Boom rotation depends on it, running stable.
Ø Pneumatic Tire: Pneumatic tires have long wear life, suitable for multiple site operations.
Ø Controller On Platform: The platform controller is equipped with a protective cover, which is waterproof and dust proof. Pneumatic tires have long wear life, Suitable for multiple site operations.
Ø Electric Detector: To insure safety before lift up. Green light means it's OK to lift after the outriggers opened. Red light means it's dangerous to lift.
Ø Outriggers Operate: Easy to operate outriggers with marked sign.
Ø Traction Bar: Germany imported ALKO Brand Brakes.
Articulated Spider Boom Lift transportation:
For one set, all models can fit into a 20 foot container.
THZB-10 / 12 / 14, these three models, a 40 foot container can hold 3 sets,
THZB-16 / 18 / 20, these three models, a 40 foot container can hold 2 sets.
Articulated Boom Lift' Power:
We often work in different working environments, and the choice of power is also different. That we can customize and provide you with various kinds of power, whether AC or DC, or gasoline or diesel. According to your requirements, we can provide a single power source, if you want, we can also provide you with dual power or multi power, so that lift can be used in Malaysia without being affected by the working environment to the greatest extent.
Articulated Boom Lift with Petrol (Honda, EPA)
We use Honda gasoline engine imported from Japan, which not only ensures the power, but also minimizes the environmental impact on Malaysia. At the same time, we also meet the EPA requirements.
Articulated Boom Lift with Diesel (Changchai)
We use diesel engine of famous brand in China, which is one of the top brands of diesel engine manufacturers in China. It is safe, reliable, durable and powerful.
Technical Parameters

Model	Lifting Height(m)	Working Height(m)	Dimensions(mm)	Platform Size(mm)	Weight(KG)	Working Radius(m)	Load Capacity (kg)
THTCZB-10	10	12	5400*1665*1900	1200*800	1700	5	200
THTCZB-12	12	14	6400*1665*1900	1200*800	2000	6	200
THTCZB-14	14	16	6200*1730*2100	1200*800	2350	8.5	200
THTCZB-16	16	18	7000*1730*2200	1200*800	2600	9	200
THTCZB-18	18	20	7100*1850*2260	1200*800	4300	10	200
THTCZB-20	19.8	22	7700*1850*2260	1200*800	4450	12	200
