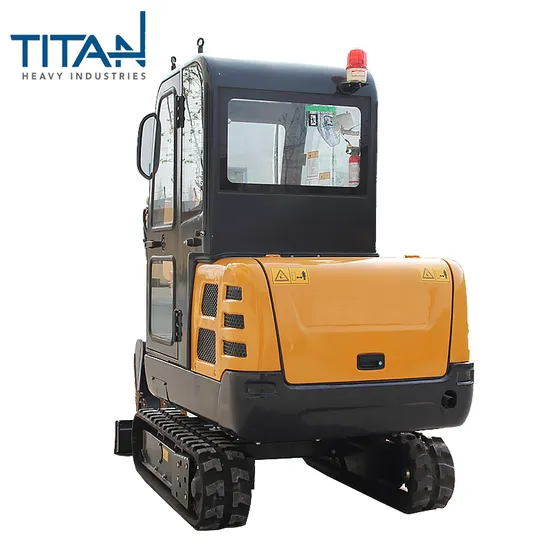

TL25E titan hot sale machine 2.5ton mini crawler excavator with best price

Product Description

TL25E titan hot sale machine 2.5ton mini crawler excavator with best price
Product Description
Main Features Small size and easy to transport, could be loaded onto light truck or small trailer, four sets could be loaded into one 20GP container to save freight cost. Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency Famous brand hydraulic system parts ensure the stable quality. equipped with double fuel filter to guarantee fuel purity to protect engine. boom deflection design meet narrow work condition, reinforced rubber track to protect road extend hydraulic line for various attachments. comfort seat make operator easy to work. Cabin with heater is optional. Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower.

Engine
Model	Laidong 3TE30 22.1kW/2000rpm
Type	Direct injection, wind cooled, natural intake
No. of cylinder	3

Main Performance
Main Speed	r/min	12-14
Traveling Speed	km/H	2.8
Grade ability	KN	70(35°)
Traveling Tracking Force	KN	15
Bucket Digging Force	KN	11.5
Arm Digging Force	KN	9.3
Overall Dimensions
Overall Length	mm	4800
Overall Width	mm	1300
Overall Height	mm	2280
Counterweight Ground clearance	mm	490
Track Length	mm	1630
Track Width	mm	250
Undercarriage Width	mm	1270
Undercarriage ground clearance	mm	235
Dozer Blade	mm	1270*240
Operation Paramters
Operation Weight	KG	2200
Bucket Capacity	m³	0.1
Max. Digging Radius	mm	4370
Max. Digging Depth	mm	2450
Max. Diiging Height	mm	2290
Max. Dumping Height	mm	370
Max. Dozer Cutting	mm	310
Max. Dozer Lifting	mm	240
Boom Deflexion Radius	°	70/50
Tail Swing Radius	mm	1180
Front Min. Swing Radius	mm	2020
Hydraulic System
Hydraulic system working pressure	Mpa	16
Hydraulic Pump	Gear Pump	AHWY
Hydraulic pump flow	L/min	2*12+5
Swing Motor		Eaton
Traveling Motor		Eaton
Fuel Tank Capacity	L	26
Hydraulic Tank Capacity	L	27

Attachment
Packing&Shipping
Application
TL10E excavator with compact design, it is suitable to be used for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse.
OUR SERVICE
Pre-Sales Service
(1) Inquiry and consulting support.
(2)Sample testing support.
(3)View our Factory.
After-Sales Service
(1)Training how to instal the machine, training how to use the machine.
(2)Engineers available to service machinery overseas.
FAQ
Q:Why choose Titan?
1) Titan: an experienced loader manufacturer with over 11 years.
2) Titan TEAM: customers-focused,you'll get reply within 5 minutes.
3)Titan: premium quality with reasonable price.
4) Titan: CE,BV,SGS,ROPS and FOPS,ISO9001:2008 varified.
Q:What is Titan warranty?
1) Titan after-sales: life-long, meantime offer one year and one month warranty.
2) Titan proposal: order some wearing parts with loader for easy maintenance.
Q:What about Titan delivery term?
10-14 days after down payment received.
Q:What about the payment term?
30% advance payment,70% balance by T/T.

---
