High Quality Amphibious Floating Excavator Earthmoving Machinery

Product Details

Product Details

Product Description

Product Description

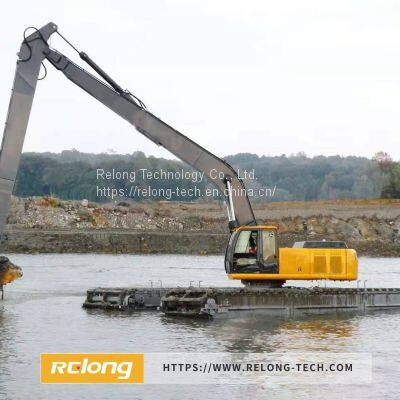

Amphibious excavators are multi-purpose excavators used in land, shallow water, marsh and deep water areas. After years of practical testing, Relong amphibious excavator has been recognized and trusted by the majority of users. The upper half structure can choose the excavator brand and all kinds of machine you need. Various types of buoyancy tank have been designed and widely used, which can be adapted to 5-40 ton excavator, and can also be customized according to your working conditions and requirements, in accordance with your exclusive scheme.
Description
Model Specification
RL-AE06
RL-AE12
RL-AE20
RL-AE25
RL-AE30
RL-AE34
RL-AE40
Track length on ground
2700mm
3500mm
5000mm
5000mm
6500mm
7000mm
7000mm
Max. Track Length
5700mm
6200mm
9500mm
9500mm
10500mm
11500mm
13500mm
Transportation Length
7260mm
8070mm
11460mm
11660mm
13610mm
14480mm
14480mm
Transportation Height
3700mm
3700mm
3950mm
3950mm
4040mm
4140mm
4800mm
Counterweight clearance
1810mm
2010mm
2010mm
2010mm
2010mm
2210mm
2540mm
Spud height
6000mm
6000mm
8000mm
8000mm
10000mm
12000mm
12000mm
Overall width(with spud)
5500mm
6160mm
6800mm
6800mm
8000mm
8000mm
8000mm
Track side
1640mm
1840mm
1840mm
1840mm
1840mm
2040mm
2340mm
Track gauge
3500mm
3660mm
3700mm
3700mm
4700mm
4700mm
4700mm
Overall width(no spud)
4500mm
5160mm
5200mm
5200mm
6400mm
6400mm
6400mm
Single track width
1300mm
1500mm
1500mm
1500mm
2000mm
2000mm
2000mm
Spud space
4000mm
4500mm
5600mm
5600mm
5600mm
6000mm
6000mm
Spud span
4900mm
5560mm
5600mm
5600mm
6800mm
7000mm
7000mm
Max.digging reach
6700mm
8210mm
9790mm
9990mm
10720mm
10740mm
11240mm
Max. Digging reach on ground
6500mm
8010mm
9699mm
9899mm
10520mm
10520mm
11040mm
Max. Digging depth
3400mm
5580mm
5660mm
5860mm
6415mm
5910mm
6365mm
Max. Dumping height
5174mm
6755mm
7880mm
8080mm
8163mm
8296mm
8605mm
Min. Dumping height
2583mm
3300mm
2501mm
2501mm
3638mm
3838mm
4370mm
Max. Digging height
8510mm
9055mm
9980mm
9980mm
11040mm
11320mm
11530mm
Max. Bucket pin height
6203mm
8040mm
8267mm
8267mm
9610mm
9610mm
10300mm
Max. Vertical digging depth
2027mm
2505mm
3029mm
3029mm
4050mm
3080mm
3980mm
Max. Vertical radius
4046mm
5555mm
6980mm
6980mm
8079mm
9275mm
9070mm
Min. Digging Clearance
325mm
465mm
562mm
562mm
420mm
910mm
1760mm
Max. Swing radius
2365mm
2445mm
3560mm
3560mm
4019mm
4413mm
4505mm

Relong Technology Co., Ltd. is located in Qingdao City, Shandong Province. It is a company dedicated to intelligent robots, ship design, water transportation equipment, marine water quality and ecological environment testing, salvage services; industrial automatic control system devices, radar and supporting equipment, communication equipment, which is a high-tech enterprise integrating sales and artificial intelligence software development, including consulting, design, production, installation, and operation management. Relong provides one-stop customized service according to each client's different dredging site condition. Professional design, international welders welding work, professional field service and after-sale service are the foundation of Relong brand equipment high quality and high reputation.
Q: What are your factory workshops?
A: Our factory production process includes casting, mechanical process, lathe process, heat treatment, assembly, and test, etc. Warmly welcome to visit & test my factory any time.
Q: How does your factory do regarding quality control?
A: "Quality is a priority. We always attach great importance to quality controlling from the beginning to the end. Our factory has 15~30 QC.
Q: Is it easy for customers to change the parts by themselves?
A: Yes, the structure is simple, customers can change it very easily. We will also supply you with maintenance tools for free.
Q: Can you install the motor or diesel engine with the pump for us?
A: Yes, we can, it's no problem, we are experienced in this.
Q: We don't know which pump model we need, can you help us?
A: Yes, please tell me your detailed requirements, include liquid, flow rate, head, etc,
My engineers teal will calculate & select the most suitable pump model for you, offer a pump solution for you.
Q: How long can you reply to us if we send an inquiry?
A: Generally within 2 hours, we will send you an official quotation sheet, with price, technology data, performance curve, dimension, etc.
