1000W 2000W 3000W Max Raycus Fiber Source Handheld Laser Welding Machine Welder Machine

Product Description

1000W 2000W 3000W Max Raycus Fiber Source Handheld Laser Welding Machine Welder Machine

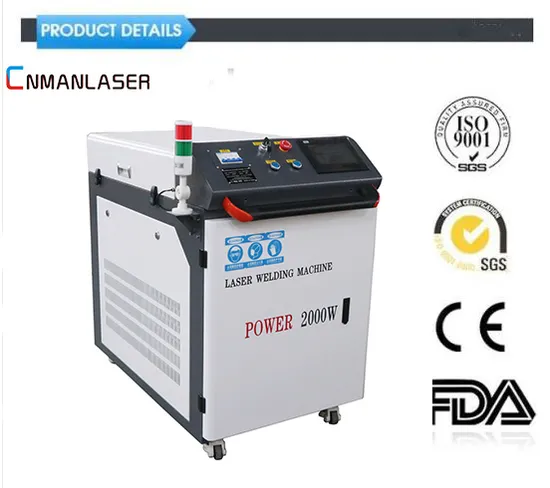

1. Picture for Welding Machines
Operation mode:
Manual welding, with simple fixture, flexible and simple operation
Electricity demand:
220/380VAC, 50/60Hz
Scope of application Cabinet, kitchen, stair, elevator, shelf, door and window guardrail, communication sheet metal shell, fan, stainless steel fixture and other industries have complex and irregular welding procedures. The welding of thin stainless steel plate, iron plate, galvanized plate and other metal materials can perfectly replace the traditional argon arc welding, secondary arc welding, electric welding and other processes.
2. Main Parameters Of Welding Machines

Maximum laser power	1000W	1500W	2000W
Laser wavelength	1070±10nm	1070±10nm	1070±10nm
Pulse width	Continuous light output	Continuous light output	Continuous light output
Number of optical fiber output	1 line	1 line	1 line
Welding depth	0.2-1.5mm	0.2-2mm	0.2-3mm
Total power	<6KW	<8KW	<10KW
Power input	AC220V+10%/3P+PE	AC220V+10%/3P+PE	AC380V+10%/3P+PE
Host size(mm)	480W*850D*224H	600W*1400D*1050H	600W*1400D*1050H
Cooling mode	water-cooling	water-cooling	water-cooling
Optical fiber model	QBH	QBH	QBH
Fiber diameter	50um	50um	50um
Fiber length	10m	10m	10m

3.Detailed Images:
Sample Show: laser welding machine is widely used in high-precision metal parts welding, electronic components welding, picture tube electron gun welding, missile detector welding, mobile phone vibration motor welding, detonator engine welding, car lights and xenon lamp welding, precision optoelectronic parts welding, etc.
Packaging & Shipping:
Company Team & Exhibition

---
