In order to meet the needs of market development, our company develops an efficient fine crusher, single cylinder hydraulic cone crusher. With the concise and compact structure, it can adjust discharge gate directly, prevent iron, and clear the cavity by the unique design of cylinder structure at the bottom. Single cylinder hydraulic cone crusher represents world's most advanced crushing technology, widely used in metal and non-metallic mineral, cement, sand and metallurgical industries for crushing, fine crushing and ultra fine crushing. It has many advantages like high efficiency crushing, low production cost, easy to maintain, good product shape, suitable for fine crushing and ultra fine crushing of minerals. It can do well in crushing the material to the required size to meet the production needs of customers.
STRUCTURE AND COMPOSITION
STRUCTURE CHARACTERISTICS
The strength of the frame structure is enhanced, and the key parts are inspected and accepted by Nondestructive scar test, so the structure strength is higher and the operation is more reliable.
The automatic control system provides users with manual control, automatic load, automatic discharge port and automatic double discharge port. High degree of visualization, reducing the user's difficulty in operation.
The positive pressure dust control system makes the pressure inside the crushing chamber always higher than the external pressure, which effectively prevents the dust or other fine particles from entering the crushing chamber , polluting lubricating oil and destroying the bearing.
Integrated design of hydraulic station and lubricating station, saving installation space;The hydraulic system adopts high pressure design to meet the demand of ordinary pressure, and the equipment has a high surplus of pressure during operation, which improves the reliability of the hydraulic system.
PRODUCT PARAMETERS
CS Technical Specification
|
Model
| Power （kW）
| Cavity Type
| Max Feed Size （mm）
| Discharge opening(mm)
| Capacity ( t/h)
|
CS820
| 90
| EC
| 240
| 22-38
| 110-132
|
C
| 200
| 16-32
| 77-133
|
CS830
| 160
| EC
| 360
| 25-51
| 151-250
|
C
| 300
| 25-48
| 170-237
|
CS840
| 250
| EC
| 450
| 35-51
| 273-447
|
C
| 400
| 32-51
| 291-375
|
CS860
| 315
| EC
| 560
| 38-51
| 385-647
|
C
| 500
| 35-51
| 335-683
|
The product particle size curve and the percentage of crushed products smaller than the tight side discharge opening (square hole, mm) are related to the crushing work index (Wi) of the material, the distribution of the feed size and other factors.
|
CH Technical Specification
|
Model
| Power （kW）
| Cavity Type
| Max Feed Size （mm）
| Discharge opening(mm)
| Capacity ( t/h)
|
CH820
|
90
| EC
| 130
| 10-32
| 110-132
|
C
| 90
| 10-32
| 77-133
|
M
| 65
| 8-19
|
|
MF
| 50
| 6-16
|
|
F
| 38
| 6-16
|
|
EF
| 28
| 30-40 with 80% less than 4.5-5.5mm
|
CH830
|
160
| EC
| 190
| 13-38
| 125-240
|
C
| 145
| 10-38
| 85-170
|
MC
| 115
| 10-32
| 65-165
|
M
| 90
| 8-32
| 75-120
|
MF
| 75
| 8-25
| 70-105
|
F
| 50
| 6-25
| 50-90
|
EF
| 35
| 70-90 with 80% less than 5-5.6mm
|
CH840
|
250
| EC
| 215
| 16-44
| 200-384
|
C
| 175
| 13-44
| 101-229
|
MC
| 140
| 13-38
| 122-242
|
M
| 110
| 13-38
| 187-194
|
MF
| 85
| 10-248
| 114-248
|
F
| 70
| 8-208
| 135-208
|
EF
| 38
| 100-125 with 80% less than 6-7.5mm
|
CH860
|
315
| EC
| 275
| 16-51
| 177-511
|
C
| 215
| 16-51
| 190-353
|
MC
| 175
| 16-44
| 253-364
|
M
| 135
| 16-38
| 295-403
|
MF
| 115
| 13-38
| 192-363
|
F
| 85
| 13-38
| 304-323
|
EF
| 65
| 13-22
| 293-290
|
CH870
|
500
| EC
| 300
| 22-70
| 588-1331
|
C
| 240
| 19-70
| 406-1286
|
MC
| 195
| 19-70
| 440-1206
|
M
| 155
| 19-70
| 563-1098
|
MF
| 100
| 16-51
| 424-702
|
F
| 90
| 13-718
| 395-718
|
EF
| 80
| 13-44
| 517-669
|
CH880
|
750
| EC
| 370
| 25-70
| 459-2181
|
C
| 330
| 22-70
| 397-2140
|
MC
| 300
| 19-70
| 513-1739
|
M
| 230
| 16-70
| 312-1564
|
MF
| 160
| 13-70
| 204-1170
|
F
| 120
| 13-57
| 289-625
|
The product particle size curve and the percentage of crushed products smaller than the tight side discharge opening (square hole, mm) are related to the crushing work index (Wi) of the material, the distribution of the feed size and other factors.
|
Processed Materials:
Limestone, Granite, Basalt, River Stones, Quartz, Copper Ore, Iron Ore, Marble, etc.

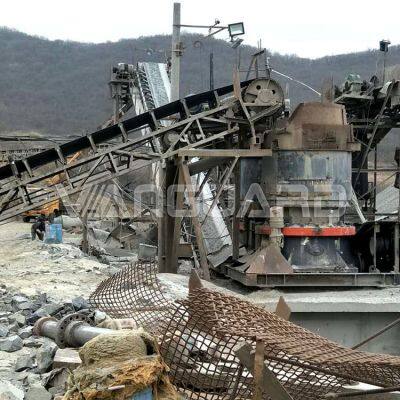

CUSTOMERS' SITES
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.
Matching of production and support system allows customers to get best service at lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification, and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will
design the most suitable proposal based on raw materials.
Q4: Why shoule I choose VANGUARD Machinery?
A: Ⅰ. Professional manufacturer of supplying mining crushing equipment, stone grinding equipment, ore beneficiation equipment etc.
Ⅱ. Experienced and professional R&D team and manufacturing team;
Ⅲ. We have a group of experienced and excellent after-sales service members who provide services for worldwide customers.
Ⅳ.All products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Ⅴ. Contact us for more details about price, packing, shipping and discount.
