Light Steel Equipment Machine for Manufacturing Stud and Track Materials

Product Description

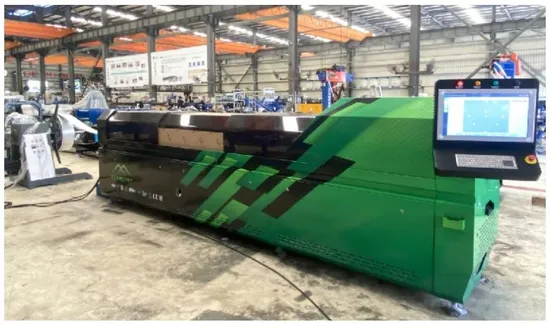

Full AutomaticRoll Forming Machine for SFS-C89T-1.2mm House
OVERVIEW
The SFS-C89T-1.2mm is a highly versatile member of the FrameTec manufacturing system. The SFS-C89T-1.2mm roll-forming machine is best suited for residential and light commercial projects and is designed to offer increased production speed, greater flexibility, and increased reliability. Producing profiles from 2.5" (63mm) to 6" (150mm) up to 18g (1.20mm) thickness.

The SFS-C89T-1.2mm is suited to construct walls, floors, and roofs for 1 - 3 level residential, modular, and transportable units, and light commercial construction. It can produce roof trusses up to 15m clear span and can be either factory-based or transportable in a mobile factory.
Machine Equipment





1. Specifications

Profile Shape	C Shape
Profile Size	63mm, 89mm, 92mm, 140mm or Other one size for fixed
Material Thickness	0.75-1.2 mm, G300-G550 Zinc-Alum Steel Coil
Operation System	21 inches Touchable Screen
Production Control SystemSelf-developed	FrameTec LGS machine Controlling Software
Design Software	Vertex BD from Finland
Comprehensive Machine Speed	Joists: 300 m/hr Walls: 700 m/hr
Max. Machine Speed	2,100m/hr
Power Supplier	380V, 50Hz, 3Phrases, can be customized
Hydraulic Coolant System	Self Cooling, Optional refrigeration device for high strength production, air cooling, and AC cooling
Punching, Cutting Mould	dimple hole, Chamfer cut, Web notch, lip cut, service hole, bolt hole, flange notch, web dimple, swage and shearing
Hole Punching Accuracy	± 0.5 mm
Decoiler	3000 kgs, auto decoiling

2. Machine Main Features

Classical LGS machine models for 6+ years, very stable and with high-speed production speed	The SFS-C89T-1.2mm produces wall frames, trusses, and joists for residential and light commercial buildings quickly economically
12 advanced hydraulic and punching functions for high productivity and versatile components production such as trusses, walls, and joists	n auto-gauging system that automatically adjusts gauge range to increase overall productivity for steel thickness from 0.75 -1.20mm
High line speed results in the accelerated cold-formed steel framing and truss manufacturing output	Smart internet connectivity provides cloud-based data reporting to enable real-time production management, and technical diagnostics to improve efficiency high
h line speed results in the accelerated cold-formed steel framing and truss manufacturing output	Self-developing control system base on the market feedback that can meet your requirement well & with good after-sales support

Machine Details



Working Flow:
De-coiler→ Leveling Device→ Punching Device→ Roll Forming System→Cutting Device →Out-let table



Machine details:

Profile Effect & Application



Design Software & Production System
(International leading brand for LGS construction design)


Our Factory




Why Choose FrameTec

FrameTec is a specialized manufacture focusing in high quality roll forming equiments for the construction of light steel frame structure & cold formed steel structures.
For many years, FrameTec insists on cooperating with customers as a partner and actively provides effective solutions to ensure reliable product performance, advanced technology, and easy operation, and promote users to a higher position in the fierce market competition.
All our machines have a built-in Windows-based machine control which accepts a basic CSV file from a range of design software options that link to our machine. This gives freedom of choice to the customer.
FrameTec specializes in Designing and Manufacturing Steel Framing Machines for Panels, Trusses, and Floor Joists in:
Residential and Commercial buildings
Steel-framed systems for modular & prefabricated buildings
Walls framed for low and high-rise buildings
Walling, floors, beams, roofing, kitchen & bathroom pods
Storage, recreational, and transportable dwellings

---
