Advanced Design Complete Automatic Broiler Chicken Poultry Farming Equipment for UAE

Product Description

Advanced Design Complete Automatic Broiler Chicken Poultry Farming Equipment for UAE

Chicken poultry barn equipment is inlcuding:

1.Main feeding line system(silo or manpower hopper) 2.Automatic pan feeding line system 3.Automatic nipple drinking line system 4.Ventilation system 5.Cooling pad system 6.Environment control system 7.Heating system 8.Fogging system 9.Curtain system 10.Plastic slat floor system

Detailed Photos

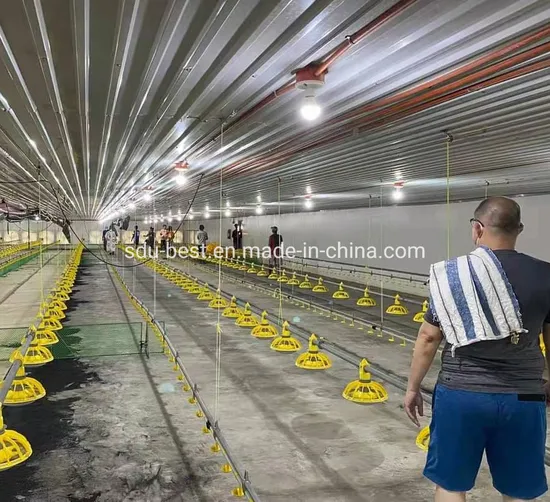

Popular chicken poultry farm porject all over the world:
Tunnel Ventilation Chicken farm project in Philippines:
Chicken shed size:450ftx52ft
House material:Prefab steel material with PU panel
Poutry equipment information:
Main feeding line system with manpower hopper
Automatic pan feeding line system-5 lines
Automatic nipple drinking line system-6 lines
Cooling pad system
Tunnel door system
Tunnel ventilation system
Environment control system
Heater system
Lighting system
Slat floor system
Chicken farm project in Sri Lanka
Chicken shed size:120mx12m
House material:Prefab steel material with color corrugated panel
Poultry Equipment information:
Main feeding line system with silo
Automatic pan feeding line system-3 lines
Automatic nipple drinking line system-4 lines
Cooling pad system
Tunnel ventilation system
Environment control system
Heater system
Lighting system


Product Description
1. Main feeding line system: (1).Main feeding system is a complete set of automatic feeding system, included a material conveying pipe, silo, auger, drive motor and a feed level sensor.
(2).Main Feed line is mainly used to deliver feed from silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line, which can control the drive motor on and off to realize automatically feeding.

Manpower hopper or silo	600/800kg hopper, 5/8/10/15/18/20mt/30mt silo
Motor	Taiwan brand/Itlay brand Power: 0.75Kw/1.1Kw Voltage: 380V, three-phase/220V, single-phase/others
Main feed line	Diameter of pipe: 75mm Material: PVC
Auger	Origin: South Africa Feeding ability: 1400Kg/h (maximum)
IFM Feed Sensor	Origin: Germany

Different specifications of silos are alternative to choose according to the daily consumption. Material of silo consist of galvanzied sheet and glass fiber reinforced plastic. *If you don't use silo, you can use manpower hopper. Usually, if you just build one or two chicken house, we suggest you use hopper instead of silo.
2.Automatic pan feeding line system:
There is a feed sensor at each feeding line which controls motor on and off to achieve automatically feed delivery. The motor will start working and deliver feed when the feed pan (with sensor) Lacks feed and will stop working when the feed pan (with sensor) is full of feed.

bin (with hopper)	Bin volume: 100L Material: Hot-DIP galvanized sheet
Feed line Motor	Taiwan brand/Italy motor Power: 0.75Kw/1.1Kw/1.5Kw Voltage: 380V, three-phase/220V, single-phase/others
Delivery pipe	Diameter of pipe: 45mm Material: Hot-DIP galvanized steel
Auger	Origin: South Africa Feeding ability: 450Kg/h (maximum)
Feed pan	Pan distance: 4 pans/3m, 3 pans/3m Raising ability: 45-55 birds/PC Material: Pure engineering plastic
Sensor	Origin: Germany
Suspension &lifting device	We can adjust the feeding line by winch.
Anti-perching device	It prevents birds staying on the feeding line for too long.

3.Automatic nipple drinking line system This system can provide fresh and clean water for poultry which is crucial for the growth of Poultry.
The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.

water line front system	Filter Pressure regulating valve Water meter Medicator(doser)
Water pipe with nipple drinker and drip cup	Nipple distance: 16 nipples/4m, 12 nipples/3m Raising ability: 8-12 birds/PC Nipple material: Inside valve is made of stainless Steel, shell is made of plastic Drip cup material: Pure engineering plastic
Suspension lifting device	We can adjust the drinking line by winch.
Waterline end module	Water display tube, etc

4.Ventilation system shutter: high strenth hot-galvanized steel sheet, with a centrifugal system it will turn on automatically , shutter will turn off automatically and seal under the influence if gravity of springs when the ventilation equipments go off, which can effectively prevent and profibit the ray outside from shining through and make the indoor air ventilation optimized.
Frame : galvanized steel sheet , the layer of the galvanization is 150g/m2, and the frame is one-time molded .
fan blades 6 pieces of germany imported mirror finished stainless steel baldes , the fan translations all have passed the experiment of homeostaisi , which make the air volume keep same as the very beginning during the operational life span of the fan .
Belt: the belt is imported from Japan , it is a ametabolic in a long time so there is no use to maintain it during its life circle.
free maintance : there is no use to maintain it during it life circle
36 Box fan

Air capacity	20800m3/H
Size	1000*1000*450mm
Noise	<64dB
Power	0.4KW
Voltage	380V
Electric current	1.6A
Weight	66KG

50 Box fan

Air capacity	43070m3/H
Size	1380*1380*450mm
Noise	<64dB
Power	1.1KW
Voltage	380V
electric current	2.8A
weight	88KG

50 cone butterfly fan

Air capacity	51020m3/H
Size	1380*1380*450mm
Noise	<64dB
Power	1.1KW
Voltage	380V
electric current	2.8A
weight	108KG

Air inlet
Window: Plastic contains the anti-ultraviolet raw material , making it longevity.
Protection Net :reasonable structure , material is Polypropylene.
Nylon pulley: Designed by patent organization, it is of rolling friction when turning on or off , low resistance and easy opening and closing.
return spring: High- quality stainless steel spring, durable and rust-;ess
pulley accessories: rigidity hard-drawn wire round steel ,ensuring accurately opening. Rigidly connected will not be stretched, the surface is treated by galvanized in case of rust.
5.Cooling pad system Character of cooling pads
the pad paper is formed by bonding pure imported paper pulp by corrugated fiber
the corrugated paper is specially treated, and hs high structural strenth, corrosion resistance and long service life
the corrugated fiber structure with certain angle has large surface area and quick purification , and has certain performance of the natural filter
the superiority of cooling pads
A.the structure without microporeson the surface can prevent algae and mineral substances from residing in the deep layer
B.the surface of the cooling pads has good hydroscopic property and can also prevent from producing beads on the surface
C.the fast drying property of the surface protective coating effectively inhibits organic substances such as algae from breeding on the surface
thickness specifications: 100mm,150mm
width specifications:1600mm,1800mm,2000
outer frame: galvanized frame , aluminum alloy frame, PVC frame.
6.Environment control system
This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working mode according to the local climate and raising environment.

Consists	Item Name	Specifications
environmental controller, environmental sensor, humidity sensor, negative pressure gauge, power box, watt-hour meter box, light regulator, main control box(with alarm), sub control box, UPS power supply group(regulator control box use), lighting system(bulb not included), wires and fixtures	environmental controller	Temptron607/610/616, AC-2000 PLUS, Rotem Platinum PLUS
	environmental sensor	world top class products
	humidity sensor	world top class products
	negative pressure gauge	world top class products
	power box	reliable and long service life
	watt-hour meter box	reliable and long service life
	light regulator	60A
	main control box(with alarm)	reliable and long service life
	sub control box	reliable and long service life
	UPS power supply group(regulator control box use)	with battery and charger
	lighting system( light bulb not included)	for boiler
	wires and fixtures	reliable and long service life

7.Spraying System
This system effectively cools,humidifies,dedusts and disinfects the henhouse(the temerature is quickly reduced by 3-8 degrees centigrade within a few minutes).

Consists&Function	Item Name	Specifications
3/8'' copper tube, nylon tube, double opening spaying sitting, copper spaying nozzle, copper T-connection part, ball valve, valve connection, direct connection, L-shaped connection, mobile main spaying machine, high pressure hose, high pressure slow shock tube, filter 1.The main spaying machine adopts Taiwan brand product, high temperature automatic protection device, the water absorption capacity is 20-38L/minute;2.Nylon tupe adopts the import products, pressurebearing capacity is 30-90kg, corrosion resistance;3.Pipeline and spraying sitting 's pressure bearing capacity is 100kg;4.Filtration system using honeycomb filter, 400 hole filtering mesh.	3/8'' copper tube	tube thickness: 1mm
	nylon tube	tube thickness: 2.7mm
	double opening spaying sitting	copper
	copper spaying nozzle	3/8'', 25-30mm
	copper T-connection part	3/8''
	ball valve	3/8''
	valve connection	3/8''
	direct connection	copper
	L-shaped connection	copper
	mobile main spaying machine	3.7kW
	high pressure hose	reliable and long service life
	high pressure slow shock tube	reliable and long service life
	filter	reliable and long service life

8.Curtain System
Curtain system is used for the open structure poultry house with no side wall, which is mainly used in the area which has high temperature weather all the year round.

Consists	Item Name	Specifications
curtain cloth, curtain drive system	curtain-PVC Curtain/500gsm	reliable and long service life
	curtain drive system	reliable and long service life

9.Heater system
In cold weather, heating system is widely used for heating the poultry house, which has good performance and can save the heating cost.

Optional type	Item Name	Specifications	Remarks
hot blast stove	hot blast stove	MRE products	Equiped with smoke pipe .
Gas space heater	Gas heater	65kw can be used for 500m2	Automatic control
Gas brooder	Gas infared brooder	one set can be used for 2000 birds	Automatic temperature controled
Diesel heater	Diesel heater	one set can be used for 500 m2	Automatic temperature control
Electric heater	Electric heater	one set can be used for 20 birds	not recommend

Pre-sale service
1. Customized drawing designing free of charge, Poultry House site Selection
2. Professional advice according to the site conditions
3. Settle transportation affair
Construction stage
1. Supply you with detailed construction drawing to guide
2. Send 1-2 engineers to your local place if you need
3. Provide related production for your reference, solar panel is available
After-sale service
1. Reasonable advice for usage, maintenance, technical improve
2. Unique engineer be in charge of your project
3. On-site and after sale service
Other services you can get from us:
Related products such as incubator,slaughter machine,feed mill machine,generator,solar panels we can provide you all.
Common FAQ for chicken poultry farm equipment:
1. What information you are supposed to provide to get a good price?
a. Chicken farm size (Length*width*height);
b. Quantity of chickens in one farm;
c. Weight of chickens when they're for sale in market;
d. Chicken farm location and local climate condition (temperature, humidity...);

2. payment details:
we can accept T.T ,30% Down payment and the balance Paid by T/T OR L/C before Shipment

3. Delivery time :
15-20 days after deposite
For More Detailed Information,Please Don't Hesitate To Contact Us.
We Will Always Provide Customer With High Quality and Good Price And Excellent Service.
Customers Are Always In The First Position.

---
