Air Filter High Efficiency HEPA Air Filters H14 in Clean Room

Product Description

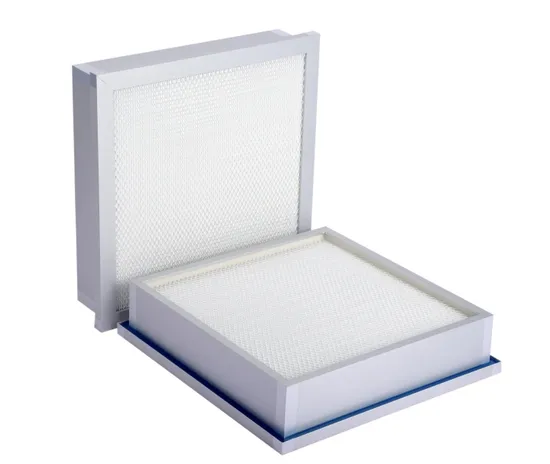

Zhongjing Air Filter High Efficiency HEPA Filters H14 in Clean Room
Product Parameters Product description:
The liquid seal filter is an ideal terminal filter for industrial clean rooms andbiological clean rooms, and it is also an ideal matching filter for other purification equipment.Liquid sealing is a method superior to conventional mechanicalcompression device sealing.

Model	Filter dimension(mm)	Rated airvolume(m³/h)	Initial resistance(Pa)	Filter efficiency(%)
GKWG-5	412x412x93	500	≤250	≥99.999%
GKWG-10	631×516x93	1000
GKWG-15	758x631x93	1500
GKWG-20	1026x631x93	2000

Product features:
Product features: The liquid sealing filter is easy to install, and the sealingis very reliable.lt is the most widely used high-efficiency filter sealingmethod in the world.
Detailed Photos
1.Material: Whole 1.0mm environmental protection board spray, stainless steel diffuser plate. The combination of the compact structure of the box and the liquid tank edge, the high sealing performance of the box, provides an ideal terminal filtration device for purifying air conditioning system.
2.PAO test port: Independent PAO test port, equipped with dust and detection ports, protected by a sealant sleeve, to quickly verify installation reliability.
3.High quality fastener: Fixed filter fastener, tight lock, simple and quick filter replacement.
4.Metal mesh baffle: the inlet inlet is equipped with baffle, balanced air supply, protect the filter, and enhance the cleaning effect.
5.Limit convex hull: limit convex hull independent design, accurate positioning of filter installation position, four side clearance uniform alignment, avoid filter dislocation air leakage, higher sealing.
6.High efficiency filter: Equipped with 758W*631D*93H liquid tank high efficiency filter 1, selected high quality imported American Heus (HV) filter paper, ultrafine glass fiber filter material, high efficiency filtration performance, beautiful appearance.
7.Air volume control valve: aluminum plated zinc material, compact structure, stable and reliable sealing performance, can be flexibly selected according to the room air supply volume 500/1000/1500/2000m³/h air volume. Flexible air volume control, provide a variety of styles (manual air volume control valve, turbine air volume control valve, manual five-speed air volume control valve, electric air volume control valve is available).
8.Spout plate: spray/stainless steel custom selection, spout plate multi-sided punching air supply design, uniform air supply stability, side mounting screws, simple and beautiful.
9.Accessories: Configuration flange, lifting lug, with the air volume side nozzle, top nozzle style is optional, to meet the site of different installation requirements, to adapt to different air volume.
