High Performance High Efficient Symons Cone Crusher Compound Spring Cone Crusher Cheap Price

Product Description

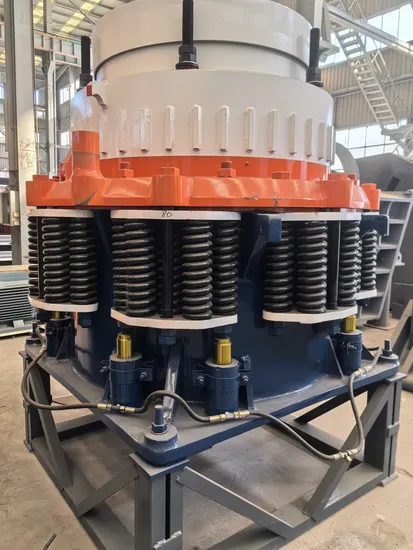

Detailed Photos
Product Advantages 1. Multiple crushing cavity type, flexible application.
2. Supporting large crushing ratio, the key parts choose special materials for manufacturing.
3. Easy to operate, reduce downtime, low power consumption, reasonable distribution.
4. Reasonable selection of parts and structural design, long service life.
5. Low maintenance cost for daily operation.
Product Parameters

Type	Model	Cavity type	Diameter of cone (mm)	Adjusting range of discharge opening (mm)	Recommend feeding size when the output size (mm)	Max feeding size (mm)	Capacity (t/h)	Main motor power (kw)	Weight (kg)	Overall dimension (L*W*H) (mm)
2'FT	CSB-0607	Standard fine	600	6-38	70	60	16-50	30	4500	2195×1158×1651
	CSB-0609	Standard medium	600	10-38	95	80	18-65	30	4500	2195×1158×1651
	CSB-0611	Standard coarse	600	13-38	110	90	22-70	30	4500	2195×1158×1651
	CSD-0603	Short head fine	600	3-13	35	30	9-35	30	4500	2195×1158×1651
	CSD-0605	Short head coarse	600	5-16	50	40	22-70	30	4500	2195×1158×1651
3'FT	CSB-0910	Standard fine	900	9-22	102	85	45-91	75	9980	2656×1636×2241
	CSB-0917	Standard coarse	900	13-38	175	150	59-163	75	9980	2656×1636×2241
	CSB-0918	Standard super coarse	900	25-38	178	150	118-163	75	9980	2656×1636×2241
	CSD-0904	Short head fine	900	3-13	41	35	27-90	75	10530	2656×1636×2241
	CSD-0906	Short head medium	900	3-16	76	65	27-100	75	10530	2656×1636×2241
	CSD-0907	Short head coarse	900	6-19	102	85	59-129	75	10530	2656×1636×2241
4.25'FT	CSB-1313	Standard fine	1295	13-31	137	115	109-181	160	22460	2983×1866×3156
	CSB-1321	Standard medium	1295	16-38	210	178	132-253	160	22460	2983×1866×3156
	CSB-1324	Standard coarse	1295	19-51	241	205	172-349	160	22460	2983×1866×3156
	CSB-1325	Standard super coarse	1295	25-51	259	220	236-358	160	22460	2983×1866×3156
	CSD-1306	Short head fine	1295	3-16	64	54	36-163	160	22590	2983×1866×3156
	CSD-1308	Short head medium	1295	6-16	89	76	82-163	160	22590	2983×1866×3156
	CSD-1310	Short head coarse	1295	8-25	105	89	109-227	160	22590	2983×1866×3156
	CSD-1313	Short head super coarse	1295	16-25	133	113	209-236	160	22590	2983×1866×3156
5.5'FT	CSB-1620	Standard fine	1676	16-38	209	178	181-327	250	43270	3941×2954×3771
	CSB-1624	Standard medium	1676	22-51	241	205	258-417	250	43270	3941×2954×3771
	CSB-1626	Standard coarse	1676	25-64	269	228	299-635	250	43270	3941×2954×3771
	CSB-1636	Standard super coarse	1676	38-64	368	313	431-630	250	43270	3941×2954×3771
	CSD-1607	Short head fine	1676	5-13	70	60	90-209	250	43870	3941×2954×3771
	CSD-1608	Short head medium	1676	6-19	89	76	136-281	250	43870	3941×2954×3771
	CSD-1613	Short head coarse	1676	10-25	133	113	190-336	250	43870	3941×2954×3771
	CSD-1614	Short head super coarse	1676	13-25	133	113	253-336	250	43870	3941×2954×3771
7'FT	CSB-2127	Standard fine	2134	19-38	278	236	544-1034	400	86730	4613×3302×4638
	CSB-2133	Standard medium	2134	25-51	334	284	862-1424	400	86730	4613×3302×4638
	CSB-2136	Standard coarse	2134	31-64	369	314	1125-1814	400	86730	4613×3302×4638
	CSB-2146	Standard super coarse	2134	38-64	460	391	1252-1941	400	86730	4613×3302×4638
	CSD-2110	Short head fine	2134	5-16	105	89	218-463	400	89500	4613×3302×4638
	CSD-2113	Short head medium	2134	10-19	133	113	404-580	400	89500	4613×3302×4638
	CSD-2117	Short head coarse	2134	13-25	178	151	517-680	400	89500	4613×3302×4638
	CSD-2120	Short head super coarse	2134	16-25	203	172	580-744	400	89500	4613×3302×4638

Product Description CS series composite cone crusher has many crushing cavities: it is divided into different cavity designs, so users can choose the crushing cavity with high crushing efficiency, even product size, good particle shape, even wear of rolling mortar wall and long service life according to the site conditions. Dry oil sealing and dustproof: the unique dustproof sealing structure is adopted, which has reliable sealing effect and prolongs the replacement cycle of lubricating oil and the service life of parts.
The crushing cavity shape and the principle of laminar crushing are adopted to produce inter-particle crushing effect, so that the proportion of cubic body in the finished product increases, the needle-like stone decreases, and the grain level is even. High output: Compared with other models, PSG series cone crusher has long crushing arm, large stroke and high crushing force.
Supports large crushing ratio:
The key parts are chosen to be made of special materials. The distance of the crushing cone from the rolling mortar wall is large in each stroke, which not only allows more materials to enter the crushing chamber, but also creates a larger discharge volume, which speeds up the speed of materials passing through the crushing chamber.
High efficiency:
The main shaft of the machine is supported at the upper and lower ends, which can withstand larger crushing force and larger stroke, together with the special crushing cavity shape that is compatible with the lamination principle, the machine has high crushing efficiency.
Low maintenance cost for daily operation:
Reasonable selection of parts and structural design, long service life, long crushing force arm, reduced load on sliding bearings, gears and frame, uniform granularity of crushed products, reduced cyclic load, hydraulic cavity clearing system: easy to operate, reduced downtime, low power consumption, reasonable distribution.
Discharge opening adjustment: PSG series cone crushers all contain hydraulic adjustment mechanism, which is easy to quickly adjust the size of cone crusher discharge opening.
Lubrication Circulation System:
Special light oil lubrication circulation system ensures that the return oil temperature is within 60ºC; the new oil filtration system ensures that the transmission device is not accidentally worn out, thus stabilizing its service life, and this double-pump oil supply lubrication system ensures that the temperature rise of the spindle and the copper wattles, long service life, reliable operation, and prolonged maintenance cycle.
Overload protection:
Its spring insurance system is an overload protection device, which can make the metal foreign objects pass through the crushing chamber without jeopardizing the machine.

After Sales Service
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

---
